Honeywell Wireless PIR IR8M

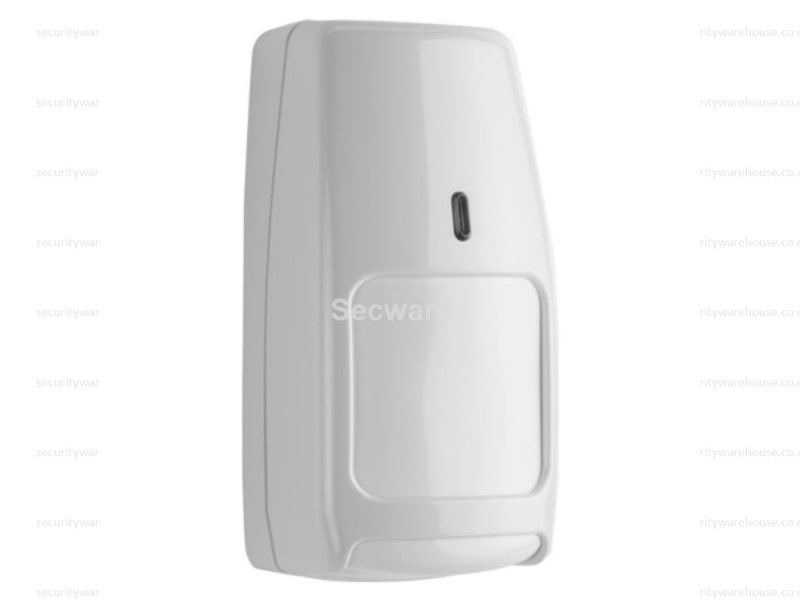

Honeywell-Compatible Wireless Infrared Sensor – IR8M
Enhance your professional security installations with the IR8M wireless motion detectors, designed to work seamlessly with Honeywell alarm systems. These advanced infrared sensors are fully compliant with TS EN50131-2-2 Grade 2, Class II standards, making them ideal for residential and commercial security applications.
Key benefits for installers:
- Rapid setup with a compact, easy-to-mount design
- Reliable motion detection tailored to high-traffic areas
- Advanced configuration options for optimal performance
The IRPI8M model features selectable pet immunity, offering three flexible detection settings:
- Non-pet mode for maximum sensitivity
- 18 kg tolerance for medium-sized pets
- 36 kg tolerance for larger pets
Perfect for professional installers, the IR8M/IRPI8M combines high-grade security features with installer-friendly efficiency—delivering cost-effective protection and high customer satisfaction.
Key features of the IR8M
- The IR8M has four levels of sensitivity. These sensitivity settings enable the product to be adapted for a wide range of installations
- The IR8M sensor mounts virtually anywhere – on walls, in corners or on ceilings
- Compatible with Domonial, Le Sucre™, Galaxy and Vista radio modules, the IR8M reduces the number of PIRs you need to have in stock.
- Walk-Test Mode. This test is mandatory to ensure proper detection, and the Honeywell technology makes this really simple and quick to use
- High performance wireless narrow band, FM radio frequency 868-870 MHz band with anti jamming
- The two different lenses supplied with the IRPI8M (Pet immune and high security) combined with four levels of sensitivity which can be adjusted by a switch, make it perfect for a wide range of installations.
- Compliant with EN50131-1 Grade 2, Class II and NF&A2P two shields
- Patented look-down mirror provides optimum detection directly beneath the sensor
- Advanced Dual slope temperature compensation
| PIR | |
|---|

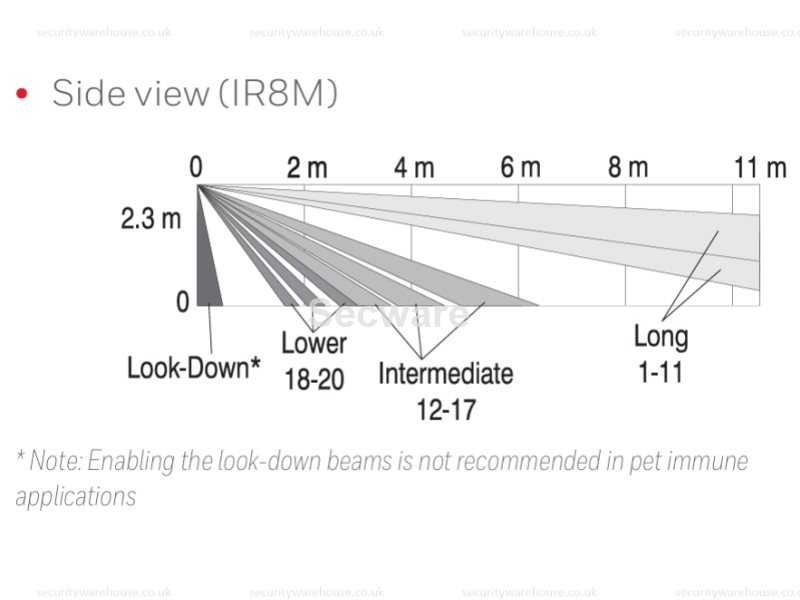

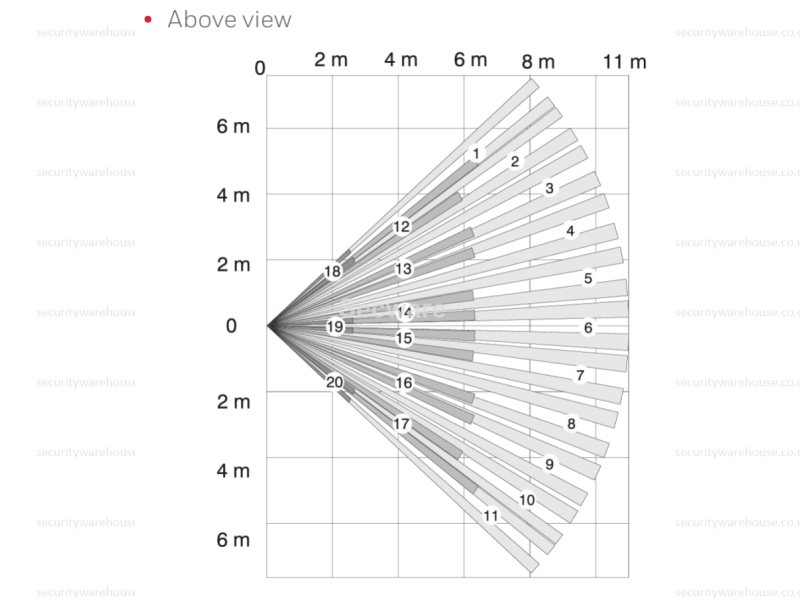

| Detection range | 11 x 12 m (at 2,30m mounting height)
Look-down pattern for Hi-Security applications |
Pet immunity
(IRPI8M only) | Switch selectable pet immunity
0, 18 or 36 Kg |
| Sensitivity & Pulse count | Switch selectable – Lowest, Low, Medium, High |
| Lenses | Pet Immune lens (IRPI8M only)
Optional Hi-Security lens (provided) |
| White light immunity | >6500lux |
| POWER | |
| Battery | 1 x CR123 |
| Battery life | >4, 5 years (> 3 years on Galaxy or Vista radio modules |
| COMPATABILITY | |
Domonial
Le Sucre™
Galaxy
Vista | All 868MHz versions
All versions
with Galaxy Radio module: RF-Portal (C079-2)
With Radio module : 5882EUHS |
| TIMINGS | |
| Walk-test | Started at tamper opening and closure
10mn duration |
| Rearming | 1min 30s to 3min |
| Supervised | Yes |
| MECHANICS | |
| Tamper | Front and back cover |
| Dimensions (mm) | 112 x 60 x 40 |
| Operating temperature | - 10°C to + 55°C |
| Storage temperature | -20°C to 70°C |
| Relative humidity | 5% to 95%, non-condensing |
| Weight without batteries | 84g |
| RADIO | Dual-protocols: V2 GY and Alpha 868 MHz , FM narrow band
2000m range in open field |
| APPROVALS | EN50131-1 and TS50131-2-2 Security Grade 2, Environmental
Class II (with high-security lens mounted), NF&A2P two shields
(N°:2620002750B1 for IR8M, N° 2620002740B1 for IRPI8M) |
