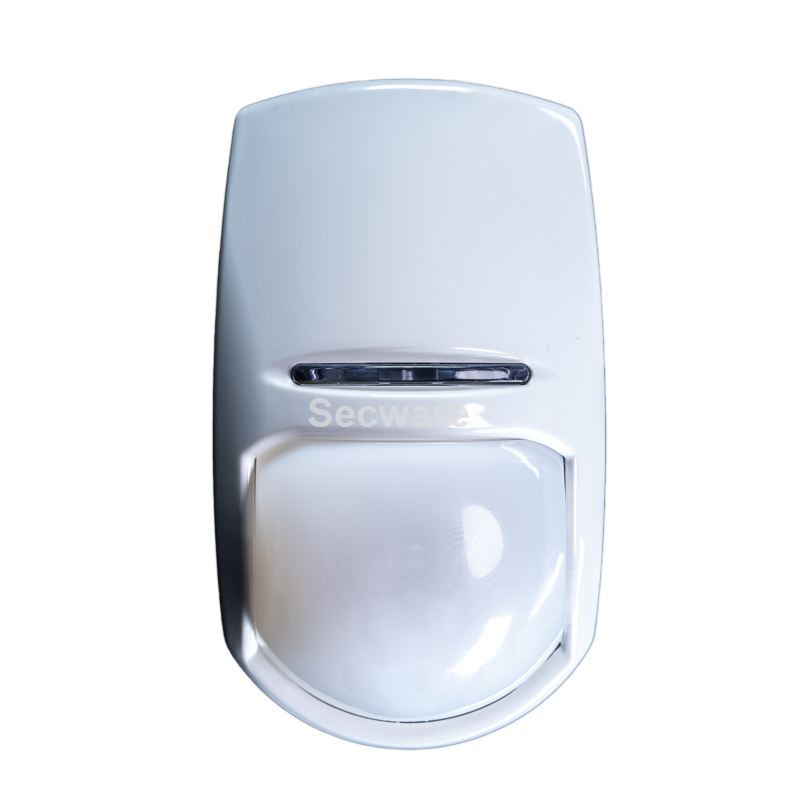

The KX12DQ-WE merges KX digital quad technology with wireless convenience. It offers enhanced precision and sensitivity, suitable for various residences and businesses. Incorporating an aspherical lens, it maintains a consistent distance between the sensor and lens, eradicating distortion and ensuring well-defined detection zones.
The KX12DQ-WE combines the excellent performance of the KX digital quad technology with the benefits of a wireless product. With increased accuracy and sensitivity the KX DQ sensor is the ideal choice for many homes and businesses alike.
Aspherical Lens
In the KX Series, the distance between the pyro-electric sensor and the lens is identical for each detection zone. This eliminates distortion and provides excellent focused zones.
In traditional detectors the lens is made in a flat form and bent into a cylinder. Therefore the distance between the pyro-electric sensor and the lens varies for each detection zone. This causes distortion and unfocused zones, reducing reliability.
Compatibility
All Enforcer 868MHz High Security Peripherals are compatible with the Enforcer control panel, and Pyronix hybrid panels fitted with the wireless zone expander.
12m Wireless Volumetric detector
12m Volumetric detection coverage. Ideal for protection of rooms, offices etc.
Signal Strength Indicator (SSI)
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.
Digital Temperature Compensation
When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32ºC (internal body temperature = 37ºC).
ABS plastics
3mm polished finish, reduces electrostatic interference on the PIR sensor.
Blue wave technology
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components: 1). The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges. 2). Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.
Sealed optics
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.
Technical Specification
Two-way wireless technology
|
Yes
|
Blue Wave technology
|
Yes
|
Automatic sensitivity
|
Yes
|
Digital temperature compensation
|
Yes
|
Tamper protection
|
Front and rear
|
Signal Strength Indicators (SSI)
|
Yes
|
Enforcer two-way wireless technology
Signal Strength Indicators (SSI)
|
Yes
|
Instant two way device control (ITDC)
|
Yes
|
Pyronix high security two way wireless data encryption protocol (TDE)
|
Yes
|
Pyronix intelligent jamming detection
|
Yes
|
Programmable wireless supervision time
|
Yes
|
868MHz transceiver FM technology
|
Yes
|
One push to learn
|
Yes
|
Tranmission method
|
Fully encrypted rolling code
|
Transmission range
|
300m in open space
|
Detectors technical characteristics
Maximum range
|
12m
|
Volumetric coverage
|
Yes
|
Coverage angle
|
85 degree
|
Detection zones
|
60
|
Detection planes
|
7
|
Mounting
Optimum coverage height
|
1.8 - 2.4m
|
Certified mounting height
|
2.4m
|
Environmental and operating features
Storage temperature
|
-20C to 50C
|
Certified operating temperature
|
-10C to 40C
|
Nominal operating temperature
|
-10C to 50C
|
Physical dimensions (H x W x D)
|
117 x 69 x 50mm
|
Electrical & battery
Battery type
|
1 x CR123A
|
Battery life
|
up to 2 years
|
Battery voltage
|
3.0V
|
Low battery threshold
|
2.5V +/- 5% at 25C
|
Certifications and warranty
Security Grade
|
Grade 2
|
Environmental class
|
II
|
EN Certificate
|
EN50131-2-2:2008, EN50131-5-3:2005+A1:2008
|
Certification type
|
IMQ
|
Certificate number
|
CA12.01325
|
Electrical conformity
|
CE
|
Warranty
|
2 years
|
