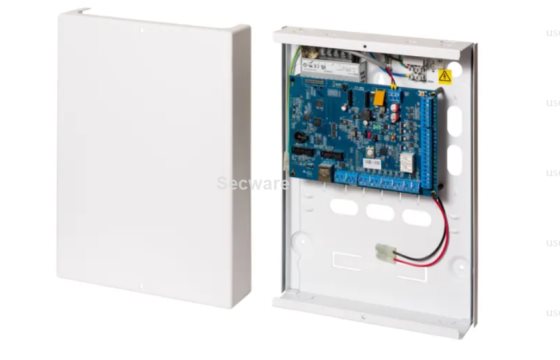

Siemens SPCevo Grade 2 Intrusion Panel
The SPC42 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 32 zones (8 on-board), 30 outputs (6 on-board), 4 system keypads, 4 doors, 4 verification zones.
The controller provides 2 X-BUS ports (2 stubs or 1 loop), 4 areas, 100 users with different access levels, memory for 1’000 intrusion and 1'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface.

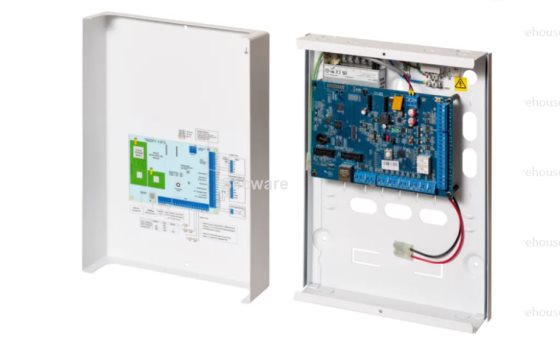

The system is expandable with TwoWay wireless receivers and supports up to 32 wireless detectors (mixed with wired zones). The panel comes in a tamper protected metal housing with space for optional 7 Ah battery and 1 additional expander.
Key Features
- On board Ethernet
- Multi Lingual support
- EN50131 compliant
- EN50136 communications
- Long Battery capacity
- Front tamper
- Definable Schedules
- Cause and effect engine
- Access control functions
- Audio and Video Verification
Technical Specification
| Operating current min. | 40mA at 230V AC |
| Operating current max. | 149mA at 12V DC |
| Quiescent current min. | 38mA at 230V AC |
| Quiescent current max. | 135mA at 12V DC |
| Peak to Peak ripple | Max. 5% of output voltage |
| Auxiliary Power (nominal) | Max. 1900mA at 12V DC |
| Supported Battery capacity | 7Ah |
| Battery Charger | Max. 72h to 80% of battery capacity |
| Bootup Time before Fully Operational | < 15 sec |
| Calibration | No calibration checks required (calibrated at manufacturing) |
| Serviceable Parts | Fuse 500mA T (replaceable part on mains terminal block) |
| Operating Temperature | -10 to +55°C |
| Relative Humidity | Max. 93% (non condensing) |
| Colour | RAL 9003 (signal white) |
| Weight | 3.480kg |
| Dimensions (W x H x D) | 264 x 357 x 81mm |
| IP/IK Rating | IP30/IK06 |
| Housing | Small metal housing (1.2mm mild steel) |
| Housing can contain up to | 1 additional expander (size 150 x 82mm) |
