Cqr Type Ab Surface Contact Grade 2 Aluminium Pre-Resistored

High Quality Alloy Finish
Double pole configuration
Other resistor value available
57cm Armoured cable lengths
EN50131-2-6 Grade 2
Environmental Class II

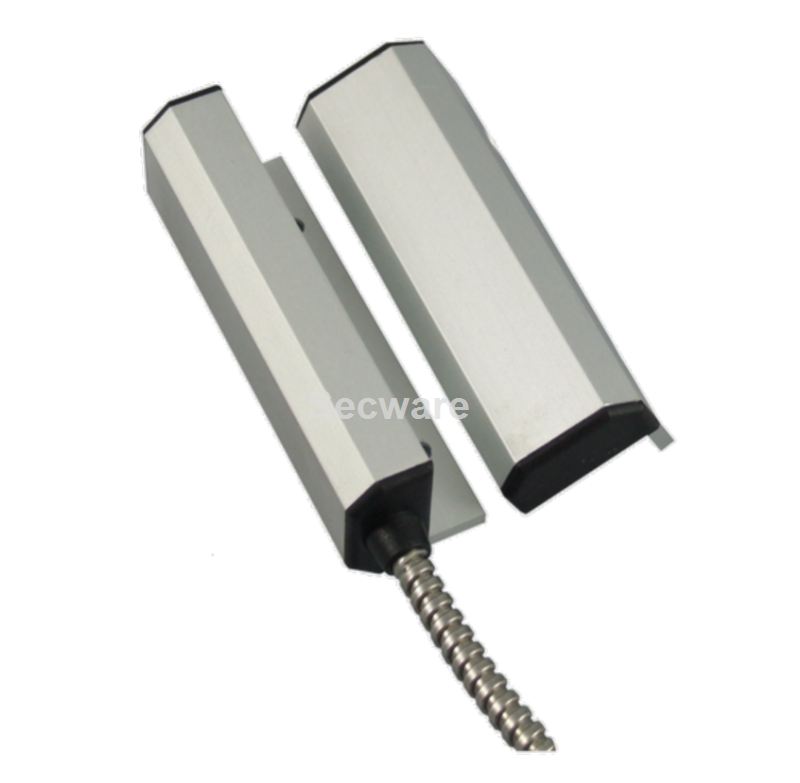

This heavy duty surface mounted magnetic contact can be used in most security systems up to grade 2 as specified in EN50131-1 and is compliant with EN50131-2-6 and environmental class II (for use indoors).

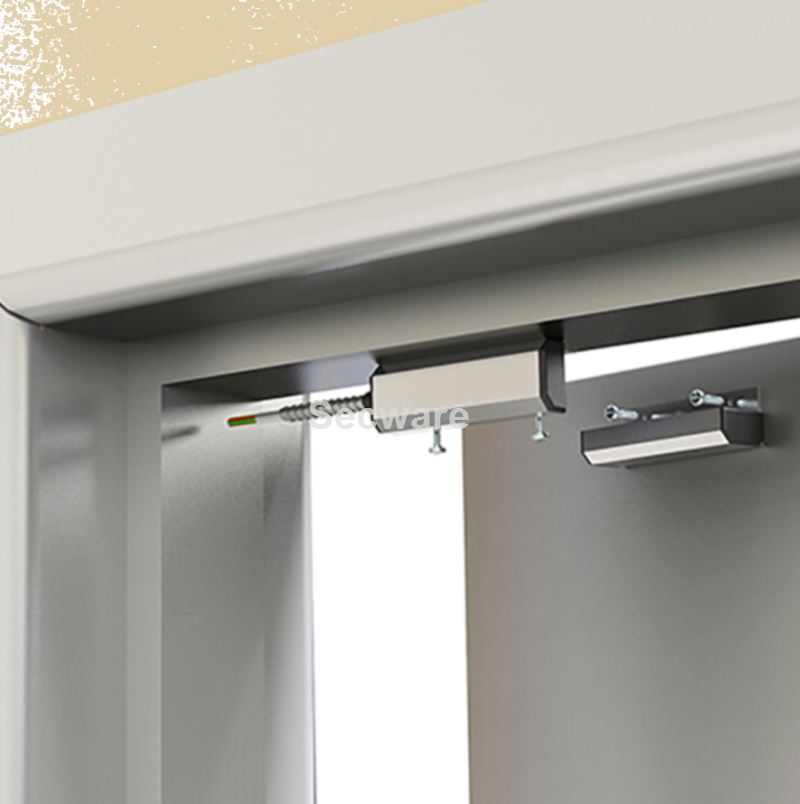

It operates as a normally closed circuit going open when the magnet housing is moved away from the contact housing. This contact can be used on doors and windows to detect the unauthorised entry of an intruder. The contact is sealed to prevent access to inside of the unit.

Colour

Aluminium

Material

Aluminium

Contact Material

Rhodium

Resistor Value

Pre-resistored

Commodity Code

85311030

Country Of Origin

UK

Height (mm)

90

Width (mm)

25

Depth (mm)

25

Barcode

5060399126700

Weight (kg)

0.185

Resistor Type

A & B

Type of

Heavy Duty

EN50131-2-6 Grade

2

Tamper Protection

Internal

EN50130-5 class

Class II

IP Rating

3X

Temperature Range

-10°C – +40°C

Contact Dimensions (mm)

85 x 27 x 26

Magnet Dimensions (mm)

85 x 27 x 26

Connection Type

Wired

No. of Terminals

8 Wire

Contact Type

Normally Closed

Wire length (mm)

470

Mode Of Operation

DP, EOL/FSL

Operation Axes (X, Y, Z)

Y, Z,

Pull-in gap (X, Y, Z)mm

25, 30

Pull in Gap

25mm

Suitable for Double Door

Yes

No of Reed Switches

1

  • Model: GP001/AB/G2
  • Shipping Weight: 1 kgs
  • Manufactured by: CQR
