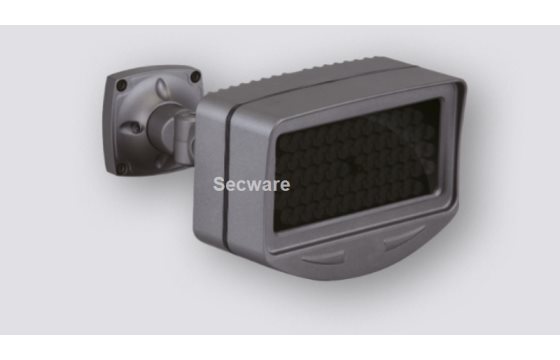

Genie Dual Volt Night Vision Lamp with Super IR LED’s - 50-70m

Product is obsolete.

Genie Dual Volt Night Vision Lamp

Obsolete - Last one available

The Genie IR5070 is a night vision lamp with super infra-red LED’s. Placed in a weatherproof enclosure, the IR5070 has a dual voltage and an adaptable bracket with three-axis movement as well as being easy to install.

Key Features

  • Standalone LED Illuminator
  • Weatherproof Enclosure
  • Extremely adaptable bracket - 3-Axis
  • Easy to install
  • Compact footprint
  • Can be switched to permanently on for applications
  • requiring continuous IR
  • External 0V relay output
  • Adjustable IR level
  • Dual voltage, AC24V/DC12V

Technical Specification

SensorCDS Photocell
Light Level (IR LED’s On)5-10 Lux
IR Range (Optimum)50-70m
IR LED’s144x 8mm
IR Wavelength850nm
IR IntensityAdjustable
External Trigger2-Wire Relay Output, 0V
Power SupplyAC24V/DC12V
Power ConsumptionAC24V: 450mA, DC12V: 900mA
Temperature Range-20°C ~ +60°C
Ingress ProtectionIP67
Dimensions190 x 133 x 254 mm
Weight1.68Kg
  • Model: IR5070
  • Shipping Weight: 2 kgs
  • Manufactured by: Genie CCTV
