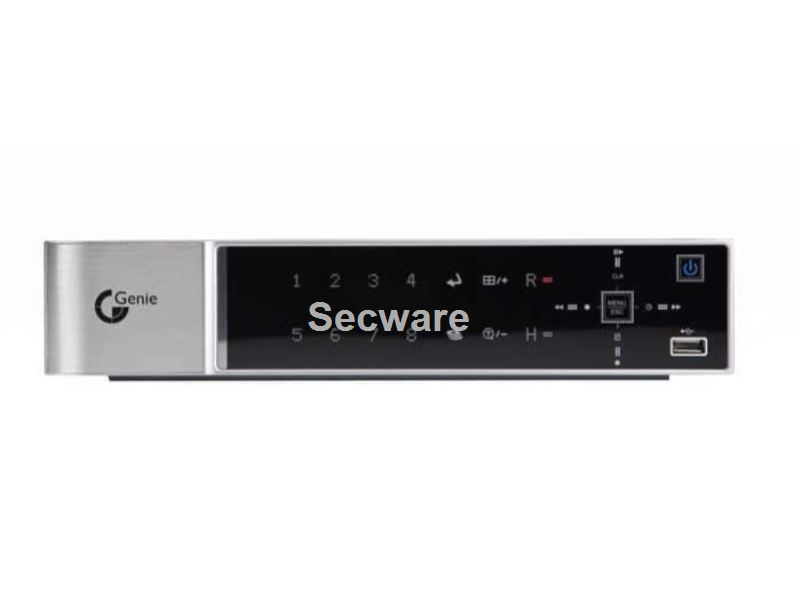

Genie 8 channel triplex DVR, Touch panel, 500GB HDD

larger image

OBSOLETE - No longer available

8-Channel Triplex Digital Video Recorder, TOUCH PANEL, H.264 Compression,

8-Channel Triplex Digital Video Recorder, TOUCH PANEL, H.264 Compression, Real Time Recording (CIF), 2 USB Ports (Rear USB for Mouse Control), Free Multisite Client Software, Easy to Use Graphical User Interface (GUI), Password Protection (5 users), Various HDD Sizes Available (Western Digital SATA), Supports upto 2Tb Internal Storage, Remote Control & Mouse (Supplied), 100FPS Recording @ CIF.

Key Features

Touch Panel
H.264 Video Compression
Embedded Linux Operating System
Simultaneous Viewing / Recording / Playback
Real Time Recording (CIF)
Network Access with Internet Explorer and Client
Free Multi-Site Client Software
Password Protection (5 Individual Users/Passwords)
User Friendly GUI Operation
2 USB Ports (Rear USB for Mouse Control)
Remote Control & Mouse (Supplied)
Compatible With Windows XP, Vista, Windows 7, Mac OSX 10.6 & 10.7
Search via Date, Time, Camera, Alarm & Motion
Supports up to 2Tb HDD
Western Digital SATA Hard Drives
100 FPS Recording @ CIF
Mobile Device Viewing from the DVR eg. Windows Mobile, Blackberry, iPhone, iPad
TouchCMS iPhone App Available
Compatible with CheckMyCCTV

Technical Details

Touch Panel
H.264 Video Compression
Embedded Linux Operating System
Simultaneous Viewing / Recording / Playback
Real Time Recording (CIF)
Network Access with Internet Explorer and Client
Free Multi-Site Client Software
Password Protection (5 Individual Users/Passwords)
User Friendly GUI Operation
2 USB Ports (Rear USB for Mouse Control)
Remote Control & Mouse (Supplied)
Compatible With Windows XP, Vista, Windows 7, Mac OSX 10.6 & 10.7
Search via Date, Time, Camera, Alarm & Motion
Supports up to 2Tb HDD
Western Digital SATA Hard Drives
100 FPS Recording @ CIF
Mobile Device Viewing from the DVR eg. Windows Mobile, Blackberry, iPhone, iPad
TouchCMS iPhone App Available
Compatible with CheckMyCCTV

Model Number	BDVR-8
Video Input / Loop Out	8 x BNC
Video Output	1Monitor, 1VGA, 1Spot
Audio Input / Output	1 In, 1 Out (RCA)
Compression	H.264
Live Display Resolution	720 x 576
Alarm In/Out	8 In 1 Out
Operating System	Embedded Linux
System Control	Mouse, IR Remote , Front Touch Key Pad,CMS, IE
Live Display Speed	8Channels Real Time
Recording Speed	25fps (720 x 576), 50fps (720 x 288), 100fps (360 x 288)
Display	Brightness,Contrast,Colour Adjustment
Camera Title	12Characters PerChannel
Recording Mode	Continuous, Schedule, Alarm, Motion
Recording Quality	Low, Middle, High, Super, Ultra
Recording Adjustments	Pre-Alarm: 3 Sec / Post-Alarm: 10 Sec. ~300 Sec.
Motion Detection	4x4 Grids (SET) / 28x24 (CMS), 20 Sensitivity Levels
Search Mode	Date & Time,Camera, Log Search
Playback of Backup File	Mini Player (AutoCopy),CMS
Multi-Tasking	Simultaneous Live Display/ Playback, Record Or Back-Up, Remote Transmission
Watermark	Yes
Watchdog	Power Failure Recovery,
Alarm Notification	E-mail : Alarm, Video Loss, Power Loss, HDD Failure
Back-Up	1 x USB 2.0
Interface	RJ45 / Ethernet
Remote Client Software	Multi-SiteClient Software (CMS), IE
Hard Drive Sizes	Western Digital 500Gb, 1Tb and 2Tb Options
Network	LAN, WAN, Internet
Firmware Upgrade	USB Memory Stick
Mobile Phone Viewing	Windows Mobile, Blackberry, iPhone, iPad
Power	DC 12V, 3A
Operating Temperature	0° ~ 40°C
Dimensions (W x H x D)	280 x 315 x 55 mm
Weight	1.91 Kg (Without HDD)
