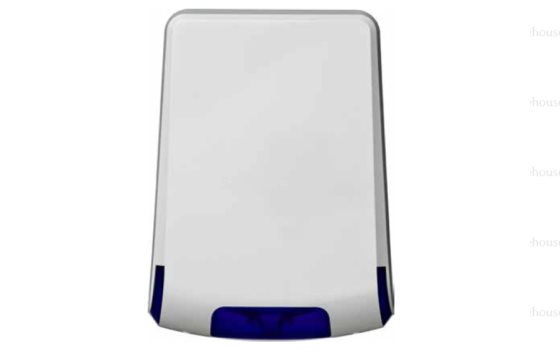

Eaton Scantronic External Sounder and Strobe Unit

Eaton Scantronic External Sounder

The SDR-WEXT-00 is an external siren and strobe unit designed for use with the i-on10, and other third-party control units. The siren uses fixed wiring between itself and the control unit.

The siren has blue flash indication and selectable loudness levels. The siren comes with built-in NiMH battery (9V/ 180mAh).
The SDR-WEXT-00 comes with built-in spirit level making it easy to ensure the product is straight when it is being mounted.

Key Features

  • Selectable sound output – 85 dB/1m; 105 dB/1m
  • Piezo speaker
  • Plastic housing with inner metal cover
  • Built-in tamper
  • Built-in spirit level
  • Built-in NiMH battery
  • Blue flash

Technical Specification

Backup Battery9V / 180mAh
Weight1.14Kg
Operating Voltage13.8-14.2 V DC
Current Consumption10mA quiescent, 270mA Alarm
EnvironmentalClass IV
Intrusion StandardsEN50131-4 Grade 2
Operating Temperature-30 to +70°C
Audio outputmin 85dB @1m, max 105dB @ 1m
  • Model: SDR-WEXT-00
  • Shipping Weight: 1.5 kgs
  • Manufactured by: Eaton Security
