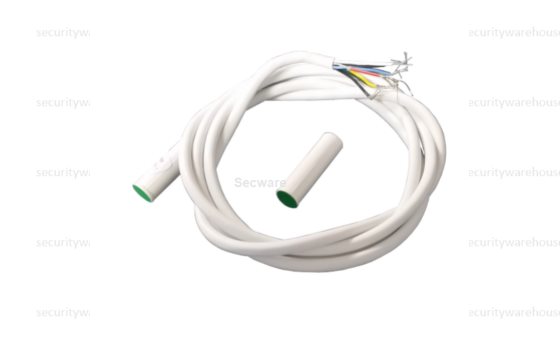

Knight Grade 3 Biased Flush Single Reed Pencil Contact

The XC30 is a sealed flush pencil contact. It comes complete with resistors (see below) and is magnetically balanced to detect magnetic interference. Core selection enables the resistors required for your installation.

Key Features

EN50131-2-6 Compliant to Grade 3
Biased to detect interference from an outside magnet
Environmental Class 3
Fits into prepared recess
1M potted cable / 6 core
Includes 6k8 resistor for alarm and 4k7 resistor for EOL
Suitable for use with Gardtec / RISCO panels
Dimensions: 27.8mm x 8mm dia
Operating Gap 0-5mm
IP67
Materials: High Impact Polystyrene

Important Notice

This product IS NOT suitable for installation in steel doors or in any other kind of ferromagnetic material. Interference from these materials will cause
unpredictable contact behaviour. As an absolute last resort, opening the fitting holes to 20mm and surrounding the parts with an insulating material may provide correct operation but this is not guaranteed.
