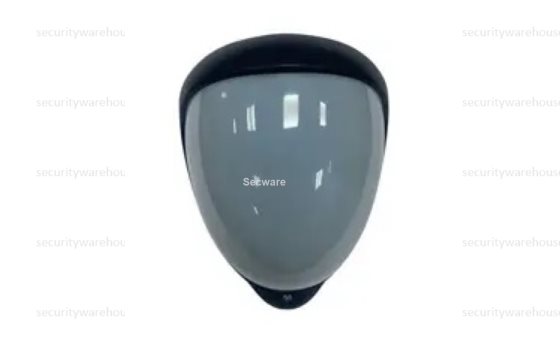

GJD 30m D-TECT 2 TCP/IP POE External Motion Detector Black

The D-TECT 2 IP is an internet protocol connected outdoor detector that combines advanced signal processing and unique optical systems.

The detection beam range can be programmed to 30 metres, avoiding boundary overspill and making it particularly effective for perimeter detection.

Using power over ethernet and IP communication, the D-TECT 2 IP supports direct integration with all major VMS and camera systems, while keeping the installation just as easy as setting up an IP camera.

Features

  • Power over Ethernet
  • Advanced signal processing, quad pyro & optical systems
  • Direct control of IP cameras
  • Web browser interface
  • Robust IP65 zinc metal housing
  • Direct integration with VMS systems
  • Ability to monitor a large detection area
  • Exceptional resistance to false alarms
  • Low maintenance & cost efficient
  • Suitable for adverse weather conditions
  • Easy to setup and service
  • Remote IP setup and diagnostics

Integrations

D-TECT IP enabled sensors seamlessly integrate with advanced security and home automation integrations

  • Supported VMS systems / NVR's
    • Axis Communications
    • Milestone
    • Genetec
    • Hikvision
    • Avigilon
    • networkoptix
    • Hanwha Techwin
    • Dahua
    • Concept Pro
    • Bosch
    • Kentima
    • Qulu
    • Mirasys
    • Griffid
    • Wavestore
    • SeeTec
    • Lilin
  • Supported cameras for direct control
    • Axis Communications
    • Hikvision
    • Dahua
    • Lilin
    • Bosch
    • Mobotix
    • Sony
    • Genie
    • ernitec
  • Supported home automation software
    • Control 4
    • RTI
    • Lutron
    • Crestorn
    • Rako
    • URC

Technical Specification

RANGEUp to 30m programmable
COVERAGE10º - 70º detection angle, 30m x 30m max
ADJUSTMENT180º pan + 90º tilt, with visual pan & tilt alignment markers
MOUNTING HEIGHTOptimum 3m
FRESNEL LENS12 zones for each pyro pair
CUSTOMISED OPTICSDouble silicon shielded quad element eliminates 50,000 Lux of white light
NETWORK ALARMSUser configurable HTTP web requests, XML and raw TCP socket support. Direct integration for all major VMS software
OUTPUTS2 x volt-free, silent solid state magnetically immune, programmable trigger options
POWER SUPPLYPower over Ethernet (48V DC)
POWER CONSUMPTIONMax 3.8W, PoE class 1
ETHERNET STANDARDEthernet IEEE 802.3af, TCP/IP
USER INTERFACEWeb browser user interface. No software or installation needed
PULSE COUNT1,2,3
WALK TESTOutput test mode with LED indication
OPERATING TEMP-20ºC to +55ºC conformally coated electronics for increased stability
TEMP. COMPENSATIONDigital sensitivity adjustment
TIMER OPTIONSUp to 120 seconds
LIGHT SENSINGDusk (2 Lux) to 24 hour
HOUSINGHigh impact zinc alloy
PROTECTION RATINGMinimum IP65
DIMENSIONS145 x 120 x 115mm
WEIGHT692g



  • Model: GJD230/D
  • Shipping Weight: 1 kgs
  • Manufactured by: GJD
