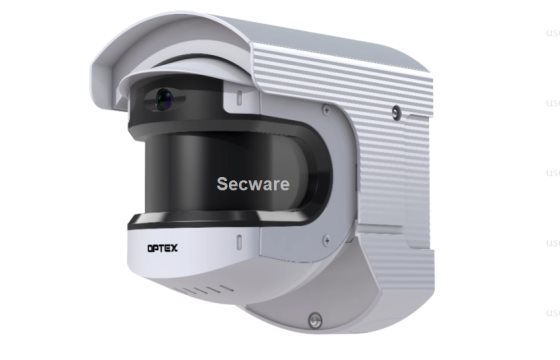

Optex Outdoor/Indoor LiDAR with Camera
Part of the ONVIF profile S compliant REDSCAN Pro Series, RLS-3060V is the LiDAR sensor providing very accurate detection of intruders and moving objects within a range of 30 m x 60 m, without any gaps and keeping the same detection resolution in the near and far. Equipped with OPTEX's most advanced technology it provides excellent detection performance not affected by variable lighting, temperature or environmental changes, making it the best solution for high security sites.
RLS-3060V provides 30 x 60 m, 190 degree detection allowing to protect wide areas, with just one sensor. The detection area can be divided in up to 8 independent zones, and for each of them the object target size, sensitivity and output can be customised. It gives great flexibility to adapt the settings depending on the zones location and level of threat. For instance one detection zone can be set to detect people, while another is set to detect vehicles, or one zones can be set as pre-warning and another as immediate security alert.
The REDSCAN Pro's detection range and versality enables to achieve what is usually done by multiple sensors.
In addition the sensor has a built-in camera which can record on the device, alarm events and save both logs and pre-post event photos and videos, to be used as additional support to review what triggered the alarm and make any adjustments necessary to the settings.
Key Features
- Grade 3 Certification
- Analytics recognising moving object’s size, location and distance from the unit
- 30x60m, customisable vertical or horizontal detection
- Built-in assistance camera, for easy installation and alarm event review
- up to 8 independent zones with configurable sensitivity, target size and output
Technical Specification
Detectable speed | 0.25 degrees / within 100 msec. to 15 min. |
Operation temperature | 20°C to 60°C ( -4°F to 140°F) with RLS-LWVH: -40 °C to 60°C (-40°F to 140) |
Weight | 2.6 kg (92 oz.) |
Laser protection class | Class 1 |
Detection Coverage | 30 x 60 m, 190 degree (approx. 100 x 200 ft.) |
Power input | 19.2-30 VDC, PoE+ (IEEE 802.3at compliant) |
Alarm period | Approx. 2 second delay timer |
IP rating | IP66 |
Dimensions | 230 × 160 × 256.6 mm max. (9.1 x 6.3 x 10.1 inch) |
Communication port | Ethernet RJ-45 10BASE-T/100BASE-TX (Auto negotiation) |
