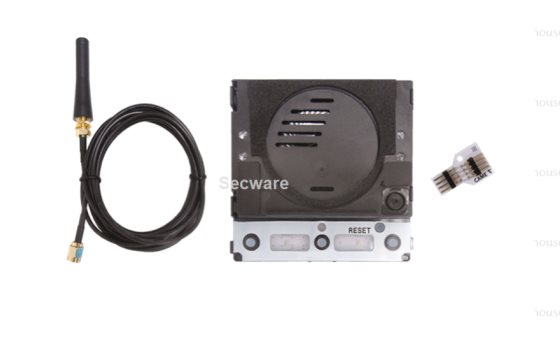

Came MTM CONNECT 4G Module

Came 4G Module

The MTM CONNECT 4G module can make calls to mobile and landline phone numbers by pressing call buttons or entering codes on MTMKB keypads. From a phone, the user can open the door or activate the auxiliary relay by using the numeric keypad during a call or through the “dial to open” function.

It supports configuration and management via the CONNECT SetUp App and is CAME Key ready. The MTM CONNECT can control up to two CAME automations and provides gateway functionalities. It also supports sending commands to access control systems and automations through the Automation App.

Technical Specification

Packaging dimensions (mm)156 x 57 x 110
Max. absorption (mA)180
900 MHz GSM EGSM signal strength33 dBm
Power supply (V)14 ÷ 24 AC/DC
Operating temperature (°C)-25 ÷ +55
1800 MHz GSM DCS signal strength30 dBm
Consumption in stand-by mode (mA)65
Protection rating (IP)54
Storage temperature-25 ÷ +70
  • Model: MTMA/CONNECT
  • Shipping Weight: 1 kgs
  • Manufactured by: Came
Ask a Question

£410.40 Ex VAT

Add to Cart:

Manufacturer Info

(image for) Came

datasheet
