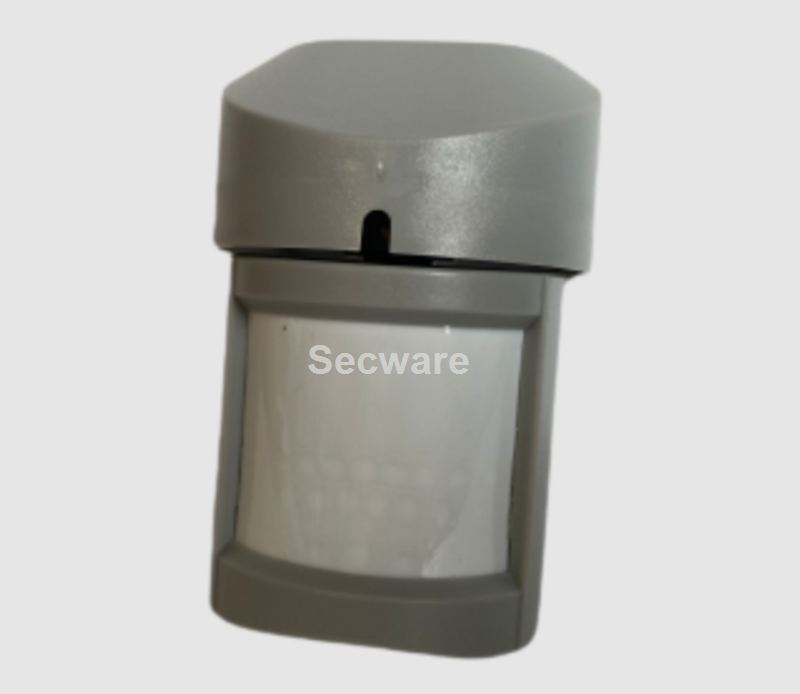

Voltek Single Head External Sensor

External PIR sensor with 90 degree x 18m detection range. Used to sense movement in a pre-determined area. Grey weatherproof enclosure

  • 18m x 90 degree detection range
  • Sensor sends signals to control / activation units upon detection of movement
  • Designed primarily for use with the Voltek lighting control units (1803 or 1812)
  • Can also be used with the Voltek Spectrum, Eyecam and Guardsman cameras
  • Very stable high quality sensor
  • Full pan and tilt adjustment
  • Weatherproof enclosure suitable for both external and internal use
  • Supplied complete with fixings and installation instructions
  • Fully compatible with the Voltek range of products below:
    • 1803, 1812 and 1817 control units
    • 1805 remote sounder
    • Spectrum range of camera equipment
    • 1870-1887 EyeCams
    • 1890-1899 ProCams

Technical Specification

Range 18m x 90°
Operating Voltage                                   12Vdc nominal
Current Consumption 3mA standby
6mA alarm
Sensor Dual element thermall stabalised
Transistor Output npn with 22K pull up and 100R in series
Transistor Rating 80mA (sink only)
Weatherproofing IP55 (suitable for outdoor use)
Dimensions (w x h x d) 95mm x 95m x 117mm
Total Package Weight 0.17KG
Pack Contents PIR, fixings and installation instructions
  • Model: 1804
  • Shipping Weight: 1 kgs
  • Manufactured by: Voltek
