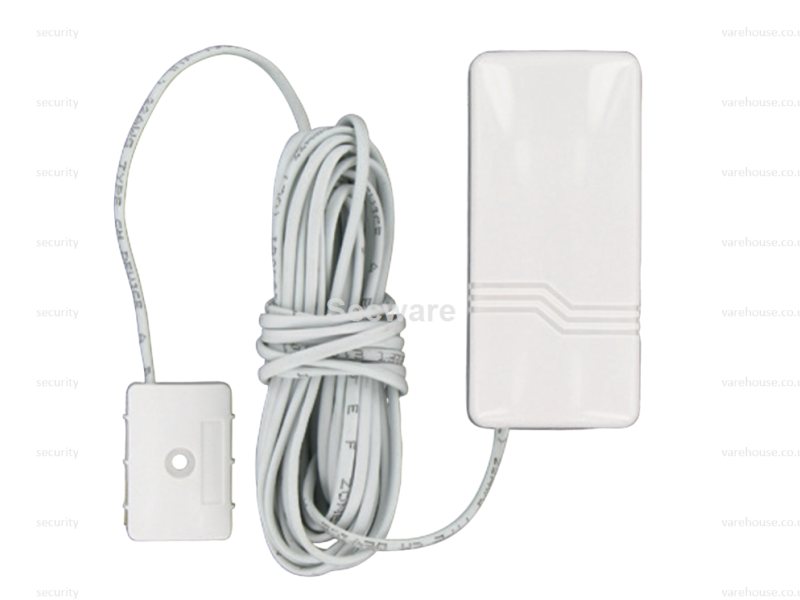

Wireless Flood Sensor and Temperature Sensor
The DET8M is a versatile wireless device that can be configured to operate as a standalone temperature sensor and/or a remote temperature sensor, or a flood detector.
The DET8M offers a real advantage as it will detect flooding and allows a signal to be transmitted from the panel to the monitoring station to enable a fast reaction to these business threats.

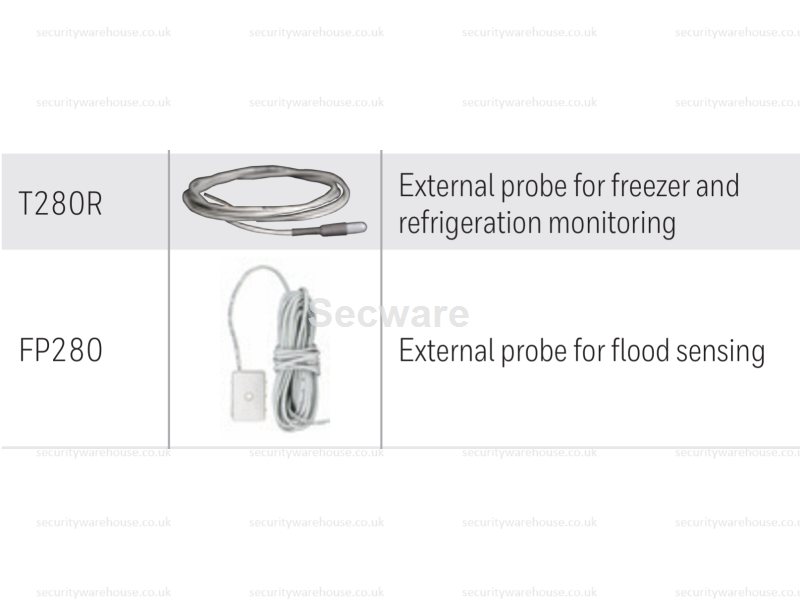

This sensor offers both internal and external detection using remote temperature and flood probes (T280R and FP280). Flood probes can be installed in areas where flood can occur (near a washing machine for example).
The DET8M will trigger an alarm at the early stage of the flood, allowing the monitoring station to take all steps to stop it before severe damages occur and save the end user significant expenses and inconvenience.
The temperature probe allows for temperature detection even inside a refrigerator or a freezer. This makes it ideal for businesses such as restaurants, retail distribution centres, butcher shops and medical sites or any other commercial or industrial premises where temperature fluctuations need to be controlled.
The DET8M provides the opportunity to offer flood or temperature monitoring and intervention services, therefore attracting new customers and opens up new revenue streams in remote monitoring as it is a new service that can be offered to end users and a new opportunity for the Alarm Receiving Centre (ARC). Its wireless capabilities allow for easy installation and practicality in every environment ensuring high customisation according to the business requirement or end user instructions.
Features
• Flood detection: External probe (FP280) is easy to install with 5m of cable for maximum f lexibility.
• Temperature detection: The sensor itself detects two ambient temperatures, with selectable cold and hot ranges.
• Freezer and refrigeration: T280R probe with two options and a wide selectable temperature range.

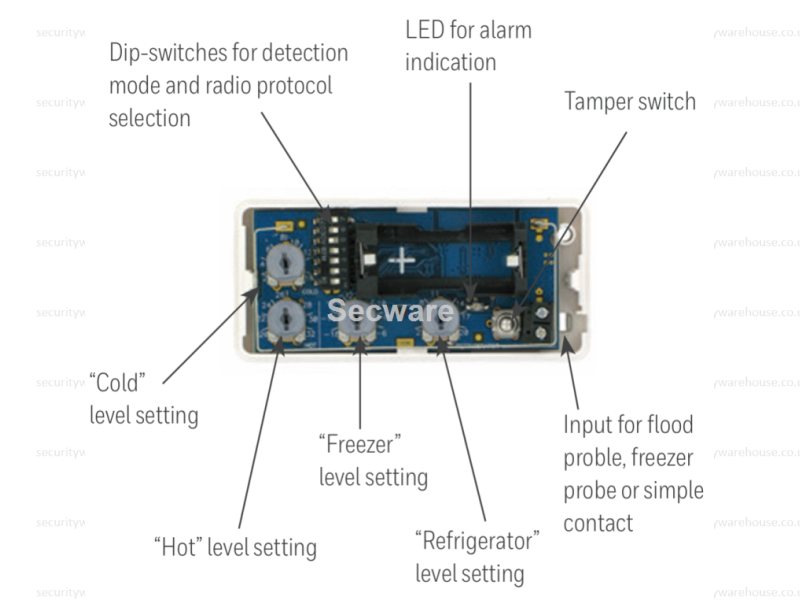

• Five selectable temperature ranges: A choice of installation solutions with easily selectable temperature ranges (hot, warm, cold, refrigerate and freeze) covering a large range of applications, reducing installation time.
• Intrusion detection: a wired, normally closed, contact can be connected to the DET8M to avoid a long distance or cabling issues.
• Reliability: Long battery life up to 7 years.
• Reliability and practicality: With patented ‘Agile Routing’, the system works with RF portals to reinforce the reliability of the security system. The sensor will automatically find the strongest bi-directional signal path and will continue to communicate until it gets an acknowledgment.
• Compatible with commercial and residential Honeywell panels: Thanks to the dual protocols ALPHA and V2GY, the wireless flood and temperature sensor is compatible with the Galaxy Dimension and Flex wireless solutions, the updated G2, Domonial and Vista panels.
| Temperature sensor (built-in) | Cold: 8°C (adjustable from 2°C to 14°C)
Hot: 26°C (adjustable from 20°C to 32°C)
Alarm signalling within 10 minutes |
| Flood probe (one FP280 supplied) | Alarm signalling within 60 seconds Cable 3m |
Temperature external probe
(T280R optional) | Freezer: -12°C (adjustable from -18°C to -6°C)
Refrigerator: 11°C (adjustable from 2°C to 20°C)
Alarm signalling within 10 minutes
Cable 3m |
| Precision range | +/- 1.75°C |
| Intrusion | By external contact (Normally closed) and
10kOhm resistor (100m max) |
| Battery | LI03V (x1) – supplied |
| Battery life | V2GY mode: 6 years
ALPHA mode: 7 years |
| RF frequency | 868 MHz |
| RF Type | Narrow Band, FM |
| RF Range, Unobstructed | 2000m |
| Galaxy | G2(1) , Galaxy Dimension(2) and Flex with
C079-2 wireless receiver |
| Domonial(3) | All 868MHz versions |
| Vista | Vista with 5882EUHS wireless receiver |
| Supervision time | V2GY mode: each 9 minutes
ALPHA mode: each 18 minutes |
| Tamper | Front cover and wall mounting |
| Dimensions (h x w x d) | 890 x 400 x 300 mm |
| Weight without batteries | 55g |
| Operating temperature | -10°C to 40°C |
| Storage temperature | -20°C to 55°C |
| Relative humidity | No condensation – 0 to 95% |
| Approvals | CE; EN50131-1, Security Grade 2, Environmental Class II |
NOTES:
(1) Valid for G2 panel firmware from version V1.5 onwards.
(2) Valid for Galaxy Dimension panel firmware from version V6.5 onwards.
(3) Valid for Domonial panel firmware from version Ixx onwards.
