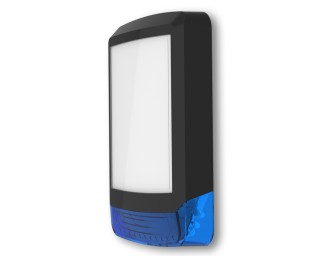

Texecom Odyssey X1 Cover (Black/Blue)

Introducing the Odyssey XB External Sounder – the ultimate solution for your security needs. With its advanced features and functions, it delivers superior performance, functionality, and flexibility. In this article, we will explore the key features and capabilities.

Photo Quality Customer Branding
The Odyssey X is the perfect solution for installers and distributors who want to enhance their brand image. With photo quality custom-designed graphic inserts, you can showcase your brand with high-quality graphics that are weatherproof, fade-proof, and waterproof. Plus, there’s no minimum order quantity, and the product is always available at distributors, making it easier for you to get what you need when you need it.

Illuminated Backlight Options
The Odyssey X-B backlight options offer the most accomplished illumination experience, ensuring your logo gets the presentation it deserves. Illumination LEDs, integrated into the backplate module, provide the highest quality illumination combined with rugged weatherproof design and installer-friendly features.

115dB (A) Twin Piezo Sounder
The Odyssey XB’s twin piezo sounder produces an impressive 115dB (A) output, ensuring that any intrusion attempt will be heard loud and clear. Additionally, the alternating white LED indication offers a visual alert to potential intruders.

Advanced Security Features
The Odyssey XB features wall and cover tamper, battery monitoring with fault output, and patented engineer hold-off mode. With these advanced security features, you can be confident that your property is protected.

EN50131-4 Compliant
The Odyssey XB is EN50131-4 compliant and Grade 3 Class IV certified, meeting the highest security standards. With its rugged design and advanced features, the Odyssey XB is the perfect solution for any security application.

In conclusion, the Odyssey XB External Sounder is a reliable, rugged, and advanced security solution that offers superior performance, functionality, and flexibility. With its photo-quality customer branding, illuminated backlight options, and advanced security features, we think it’s the perfect solution for any security application.

  • 115dB (A) twin piezo sounder
  • Wall & cover tamper
  • Patented engineer hold-off mode
  • Battery monitoring with fault output
  • Alternating white LED indication
  • Grade 3 Class IV
  • Part code WDC-0002

Technical Specification

WIRED UNITS
Supply Voltage: 12-16 VDC (13.7 nominal)
Current Drain (typical at 13.7VDC):
Quiescent 18mA +40mA (Backlit version)
Strobe 100mA
Sounder SAB LC SCB
X-E: 285mA 160mA 30mA
X-BE: 325mA 200mA 70mA
X: 405mA 190mA 30mA
X-B: 445mA 230mA 70mA
Standby Battery :
Type: NiMh Stack
Voltage: 7.2VDC (nominal)
Capacity 250mAh
Flash Tube: 1Ws Xenon
Comfort LEDs:
Brightness: 100mcd (typical)
Flash Rate (tamper secure): 1Hz alternating (typical)
WIRELESS UNITS
Supply Voltage: 12V DC
Battery Type: 8 x Lithium type (AA 1.5V)
High Power LED Strobe: 320lm
Comfort LEDs:
Brightness: 100mcd (typical)
Flash Rate (tamper secure): 1/4 sec flash at 5 sec intervals alternating (typical)
Wireless Frequency: 868.0MHz - 868.6MHz
ENVIRONMENTAL
Volume (SAB mode at 13.7 VDC):
X-W: 105dB(A)
X-E & X-BE: 109dB(A)
X & X-B: 115dB(A)
Acoustic Output: Varying Sound Output
Cut-Off Time: 15 minutes
Waterproof Coating: Conformal
Operating Temperature: -25°C to +55°C
Storage Temperature: -25°C to +60°C

Odyssey X1 Part Numbers

ODYSSEY X COVERS
WDA-0001 Odyssey X1 Cover (White/Blue)
WDA-0002 Odyssey X1 Cover (White/Red)
WDA-0003 Odyssey X1 Cover (White/White)
WDA-0007 Odyssey X1 Cover (White/Green)
WDA-0004 Odyssey X1 Cover (Black/Blue)
WDA-0005 Odyssey X1 Cover (Black/Red)
WDA-0006 Odyssey X1 Cover (Black/White)
WDA-0008 Odyssey X1 Cover (Black/Green)
ODYSSEY X ELECTRONIC OPTIONS
WDC-0001 Odyssey X-BE Grade 2 Sounder with Integral Backlight
WDC-0002 Odyssey X-B Grade 3 Sounder with Integral Backlight
WDD-0001 Odyssey X-E Grade 2 Sounder
WDD-0002 Odyssey X Grade 3 Sounder
WDE-0001 Odyssey X-D Dummy Sounder
GBV-0001 Odyssey X-W Wireless Sounder



  • Model: WDA-0004
  • Shipping Weight: 0.5 kgs
  • Manufactured by: Texecom
