Eaton 12M Dual Tech Detector Pet Tolerant

Eaton wired and radio dual tech detection DET-RDT-G2 DET-RDTPT-G2 DET-WDT-G2 DET-WDTPT-G2 An internal detector with dual technology detection utilising a combination of PIR and microwave sensors, for use in domestic and commercial installations.

These grade 2 detectors use a combination of PIR and microwave detection technology to provide greater tolerances to changing environmental conditions. Available in both wired and radio variants, these detectors link seamlessly into the Eaton security system in terms of function, style and reliability. Pet tolerant variants are also available in wired and radio form. The use of standard AA batteries for the radio variant reduces service complexity while maintaining typical battery life of two years.

At a glance...

  • Combined passive infra-red and microwave detector
  • Selectable FSL resistance values (wired)
  • Adjustable microwave detection range
  • Walk test input to enable LEDs (wired)
  • Radio and wired options offering flexibility during installations
  • Alarm and Tamper EOL values 1K, 2k2, 4k7

Technical Specification

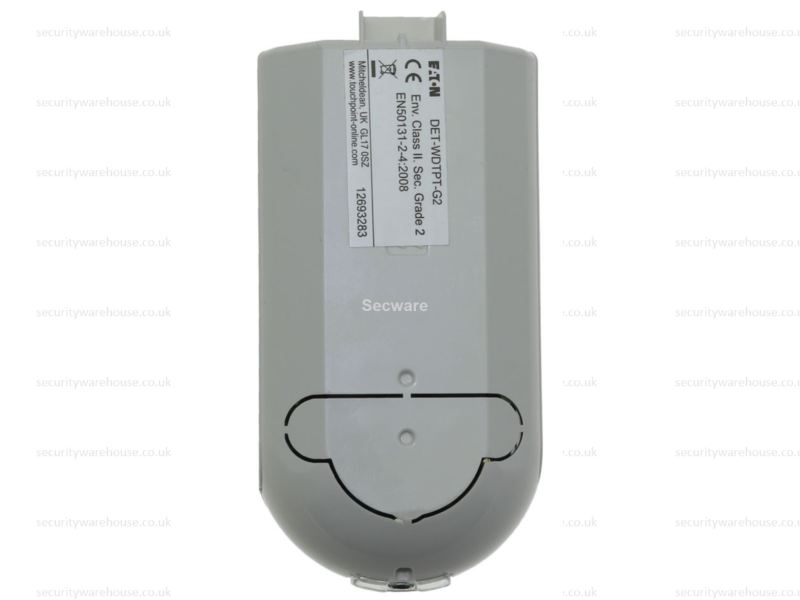

Product Code DET-WDTPT-G2 Wired Dual Tech Pet tolerant
Weight 0.120Kg
Material Plastic
Environmental class Class II
Security grade Grade 2
Tamper Front & Rear
Compliance Certified to EN50131-2-4 PD6662:2017
Humidity up to 93%
Operating temperature -10°C to +55°C
Dimensions (WxHxD) 55 x 115 x 55 mm
Pet tolerance 25kg (PT version, or selectable by jumper on version DET-RDT1, DET-RDT2, DET-RDT3)

Eaton Was Scantronic

  • Model: DET-WDTPT-G2
  • Shipping Weight: 1 kgs
  • Manufactured by: Eaton Security
