Elmdene PoE Mini Pod

Elmdene Power Over Ethernet (PoE) standby device

New to Elmdene's power supply range are Power Over Ethernet (PoE) standby devices. These units are capable of providing back-up power that can be used in security, access control and information technology applications.

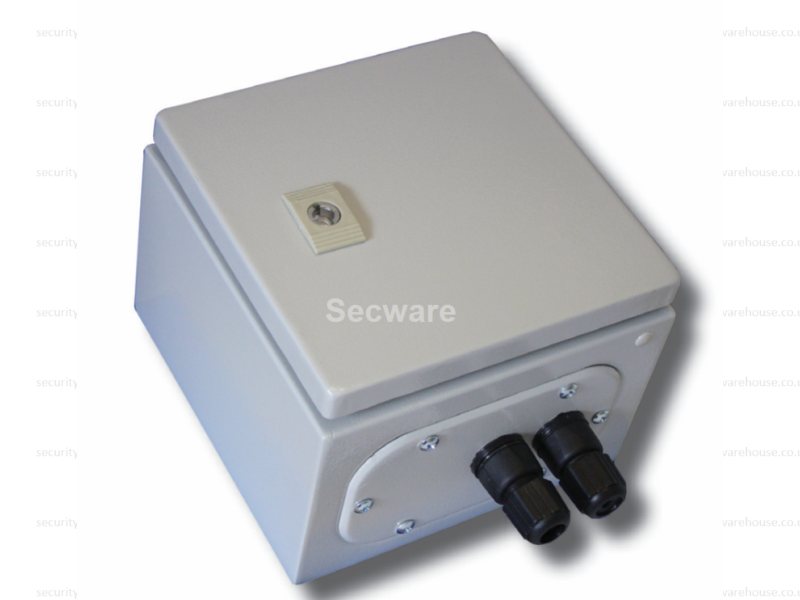

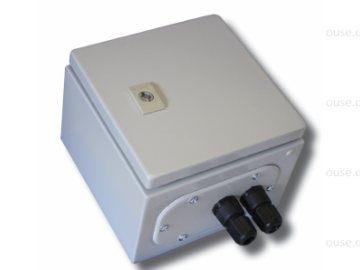

PoE MiniPod™

Compliant PoE PSU powered by a single PoE+ signal from the PowerPod™.  From this single PoE input, it charges a 12V 7Ah battery, whilst also providing a PoE+ output, of up to 14W, to the powered device. Housed within an IP66 enclosure it is provided with a lockable hinged lid and also two IP67 RJ45 cable glands for simple plug-in connections.

Features:

• Provides battery backed PoE (802.3af) or PoE+ (802.3at) up to 14W max
• Simple PoE in and PoE out connections (IP67 RJ45 glands provided)
• Accommodates & charges a 12V 7Ah battery providing approximately 4-hours backup
• Powered by PoE+ from the PowerPod™ (no requirement for a mains fuse spur)
• IP66 Enclosure for external use
