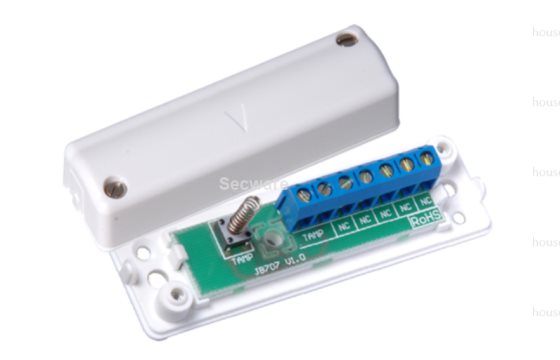

CQR 6 Way Grade 3 Junction Box

Junction Box with microswitch tamper and optional base tamper.



Key Features

  • ABS
  • Screw terminals
  • Microswitch tamper
  • Optional base tamper
  • Grade 3 Environmental Class II
  • Conforms to PD6662:2017



Technical Specification

No. Connector Terminals5
No. Tamper Terminals2
Connection TypeTerminals
Lid TamperMicroswitch
Wall TamperOptional
WireGuardStainless Steel
Wire Range22-14AWG, 1.5mm2
Rated Voltage (V)30
Rated Current (A5
MaterialABS
ColourWhite

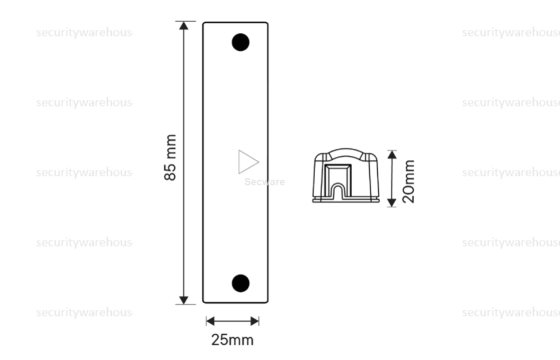

Dimensions (H x W x D)85 x 20 x 25 mm
Environmental ClassII
StandardsEN50131-1, EN50130-5
PD6662:2017Yes
Commodity CodeCN
Security Grade3
  • Model: JB707/WH
  • Shipping Weight: 0.5 kgs
  • Manufactured by: CQR
