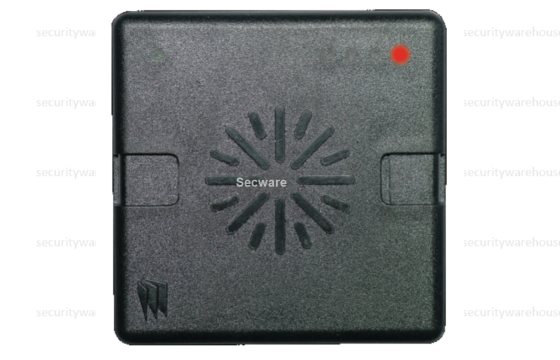

Castle Care Tech 1 Zone External Reader

Pyronix EUR-108X External 1 Zone Setting Device.



Key Features

  • Can be used as entry control
  • Green and red LEDs indicate system status when valid tag/card is presented
  • IP65 rated external proximity reader
  • Wires directly to the RS-485 BUS
  • Proximity tag or card reader
  • Switched negative for relay magnetic lock control
  • Can be used to set/unset (arm/disarm) controller
  • Complies with EN50131-1



Technical Specification

Intergrated prox readerYes
IP 64 rated external prox readerYes
Certified operating temperature-10 to +50C
Nominal operating temperature-10 to +50C
Physical dimensions (H x W x D)85 x 85 x 21mm
Operating voltage13.8V (9-16V range)
Supply currentMax. 90mA @ 13.8V
Security GradeGrade 3
Environmental classIV
EN CertificateEN50131-1 | PD6662
Certification typeSelf-certified
Electrical conformityCE
  • Model: EUR-108X
  • Shipping Weight: 1 kgs
  • Manufactured by: Castle Care-Tech
