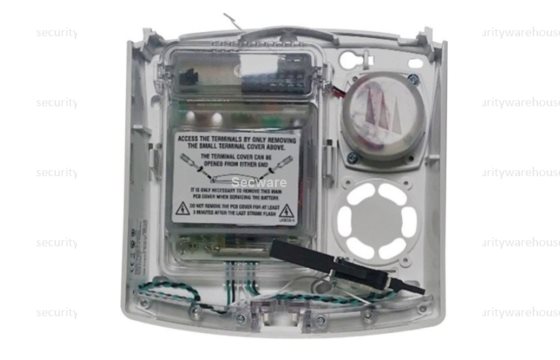

Texecom Premier Elite Odyssey 5E Compact Backplate

The Texecom Odyssey 5E from Texecom are the ultimate blend of form and function. With stunning low-profile aesthetics the unique mechanical design improves lens contrast, resulting in superior strobe visibility even in direct sunlight. Available in both twin piezo and single piezo sounder versions, the Texecom Odyssey 5E once again define a new benchmark in external sounders.



Key Features

  • Single Piezo Sounder Producing 109dB(A)
  • IP44 Enclosed Electronics Module
  • Lid & Wall Tamper Detection



Technical Specification

Material3mm Ploycarbonate
Tamper DetectionOdy 5: Wall, screw & lid Ody 5E: Wall & lid
Dimensions (h x w x d)284mm x 256mm x 68mm
Packed Weight1250g (44oz) approx
Supply Voltage12-16 VDC (13.7 nominal)
Current Drain (typical at 13.7VDC)Strobe: 100mA
Cut-Off Time:<15 minutes
Environmental ProtectionOdy 5: IP65 Ody 5E: IP44
Operating Temperature-25˚C (-13˚F) to +55˚C (+131˚F)
Storage Temperature-25˚C (-13˚F) to +60˚C (+140˚F)




  • Model: FCF-0005
  • Shipping Weight: 1 kgs
  • Manufactured by: Texecom
