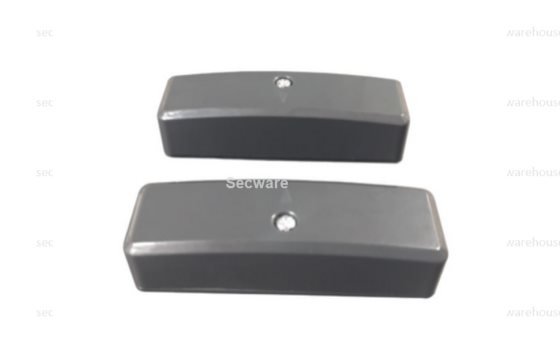

Knight D75 Anthracite Grey Surface Contact with Selectable Resistors

A Grade 2 contact easily suited to most intermediate installations. Ideal for double door / shared zone use.

D75MULTI features a variety of integral resistors, providing 2 wire EOL installation capability. The resistors will suit a wide range of the most popular panel brands such as Honeywell, Ademco, Orisec, Scantronic, Menvier, Texecom, Pyronix, Castle, Aritech, Europlex, Gardtec, RISCO (incl. Lightsys, Prosys), HKC, Guardall and Inner Range Control Panels etc.

The resistors are integral to the PCB – specific configurations are made by linking PCB pins using the supplied shunts. An option is provided that will bypass these resistors entirely, should a traditional 4-wire or other configuration be required.

Wiring is completed using four wire clamping screw down terminals on the PCB.

A microswitch tamper provides detection lid removal.

This variant has Anthracite Grey (RAL 7016) coloured housings.

Fitting screws are supplied.



Environmental ClassII – Indoor Controlled
Terminals4 terminal
TamperMicroswitch
Make Distance~35mm
EOL Resistors1k, 2k2, 4k1, 4k7, 5k6
Alarm Resistors1k, 2k2, 4k1, 4k7, 6k8
Dimensions78mm x 24mm x 20mm
  • Model: D75MULTIGY-7016
  • Shipping Weight: 0.5 kgs
  • Manufactured by: Knight Manufacturing
