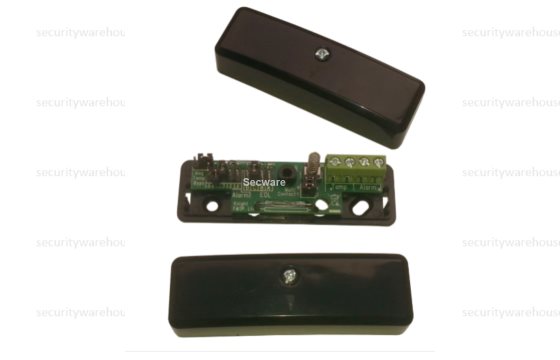

Knight Black Grade 3 Surface Contact with Selectable Resistors

Knight Black Grade 3 Surface Contact with Selectable Resistors

Key Features

• Colour: Black (RAL9011)
• Grade 3 Surface Contact with Magnetic Interference Detection and Selectable Resistors
• This is compatible with all mainstream UK control panels and includes both EOL and alarm by-pass resistor options
• Black Contact
• Black Door Contact
• TACT Microswitch tamper
• Environmental Class 2
• Operation Gap: 30mm
• Approx Dimensions: 78mm x 25mm x 20mm
• Terminals: 4-Terminal Block Tamper
• TACT Microswitch

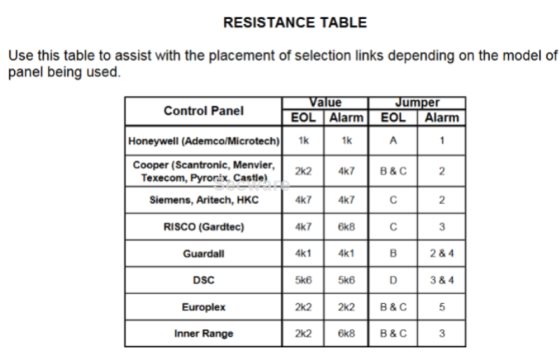

• Includes resistors compatible with: Honeywell, Ademco, Scantronic, Menvier, Texecom, Pyronix, HKC, Castle, Aritech, DSC, Gardtec, Guardall and Inner Range Control Panels
• Alarm Values 1k, 4k7,5k6,6k8,8k2
• EOL Values 1kr,2k2,4k7,5k6,8k2
• Just move easily accessible jumper to select
• Note this contact already meets the requirements of EN50131-2-6: 2008
• Can be turned into a Grade 2 device by simply using the header provided
• Contains two free spacers for awkward installations
• Suitable for double doors / wired in series / shared zone
