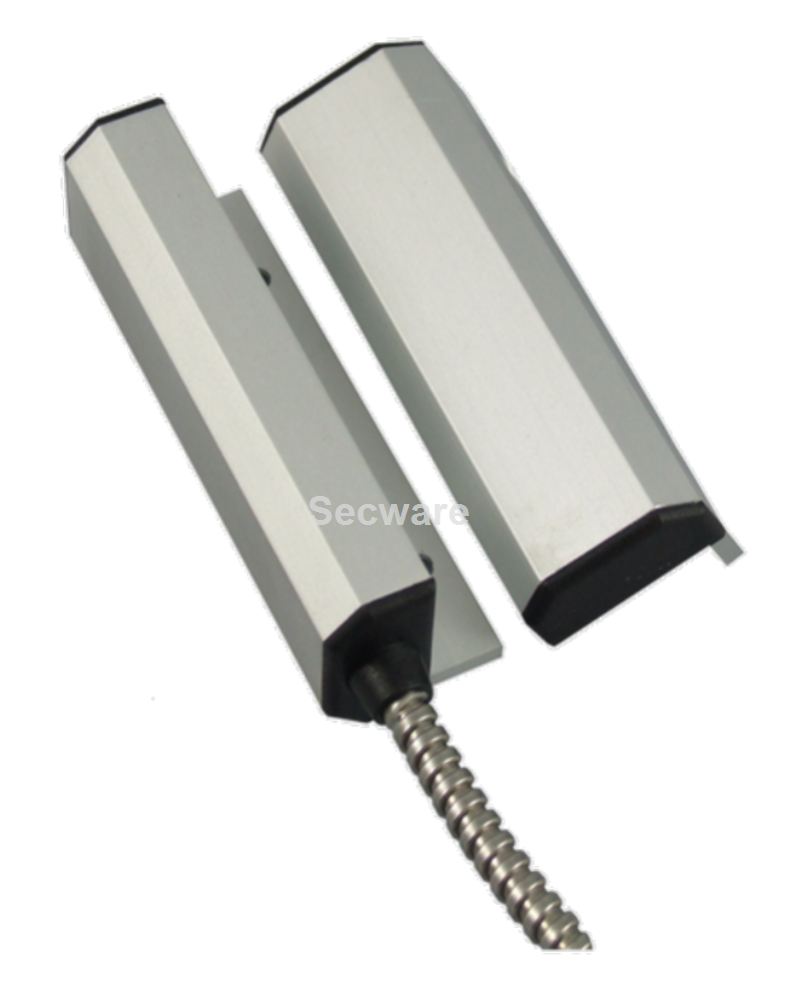

CQR Aluminium Surface Contact
This heavy duty surface mounted magnetic contact can be used in most security systems up to grade 3 as specified in EN50131-1 and is compliant with EN50131-2-6 and environmental class II (for use indoors). It operates as a normally closed circuit going open when the magnet housing is moved away from the contact housing.

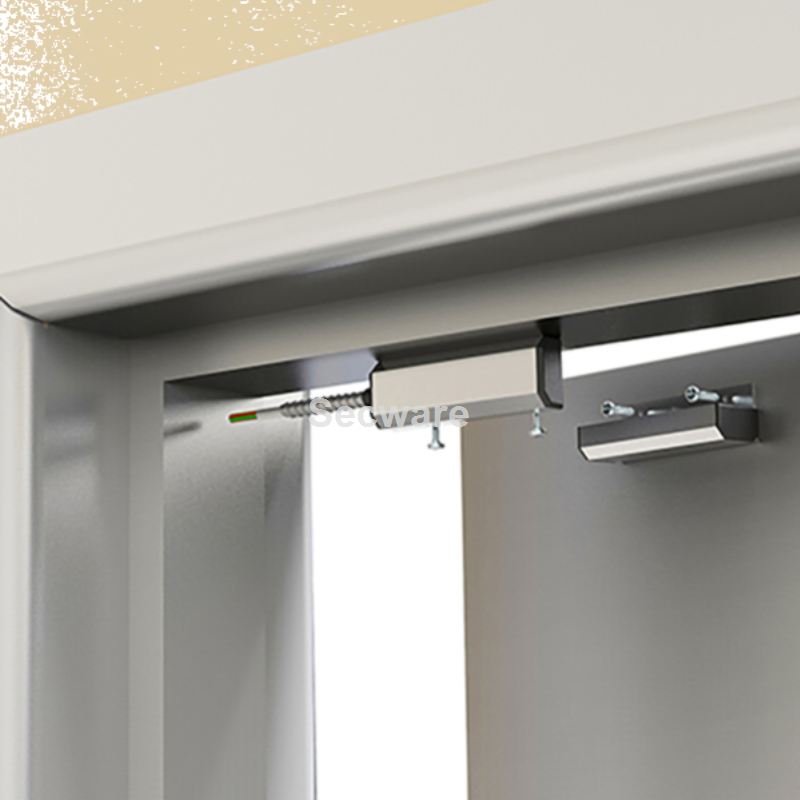

This contact can be used on doors and windows to detect the unauthorised entry of an intruder. A number of applications are shown over. The contact is sealed to prevent access to inside of the unit. Additionally there is a magnetic interference detection circuit for signalling the proximity of a magnet, which typically would be used by an intruder trying to inhibit the performance of the contact.
Key Features
- High Quality Alloy Finish
- Double pole configuration
- Other resistor value available
- 57cm Armoured cable lengths
- Magnetic Detection
- EN50131-2-6 Grade 3
- Environmental Class II
Technical Specification
| Material | Aluminium |
| Contact Material | Rhodium |
| Resistor Value | Pre-resistored |
| Commodity Code | 85311030 |
| Country Of Origin | UK |
| Height (mm) | 90 |
| Width (mm) | 25 |
| Depth (mm) | 25 |
| Barcode | 5060399126717 |
| Weight (kg) | 0.165 |
| Resistor Type | A & B |
| Type of | Heavy Duty |
| EN50131-2-6 Grade | 3 |
| Tamper Protection | Internal & MID |
| EN50130-5 class | Class II |
| IP Rating | 4X |
| Temperature Range | -10°C – +40°C |
| Contact Dimensions (mm) | 85 x 27 x 26 |
| Magnet Dimensions (mm) | 85 x 27 x 26 |
| Connection Type | Wired |
| No. of Terminals | 8 Wire |
| Contact Type | Normally Closed |
| Wire length (mm) | 470 |
| Mode Of Operation | DP, EOL/FSL |
| Operation Axes (X, Y, Z) | Y, Z, |
| Pull-in gap (X, Y, Z)mm | 8, 8 |
| Pull in Gap | 25mm |
| Suitable for Double Door | Yes |
| No of Reed Switches | 1 |
