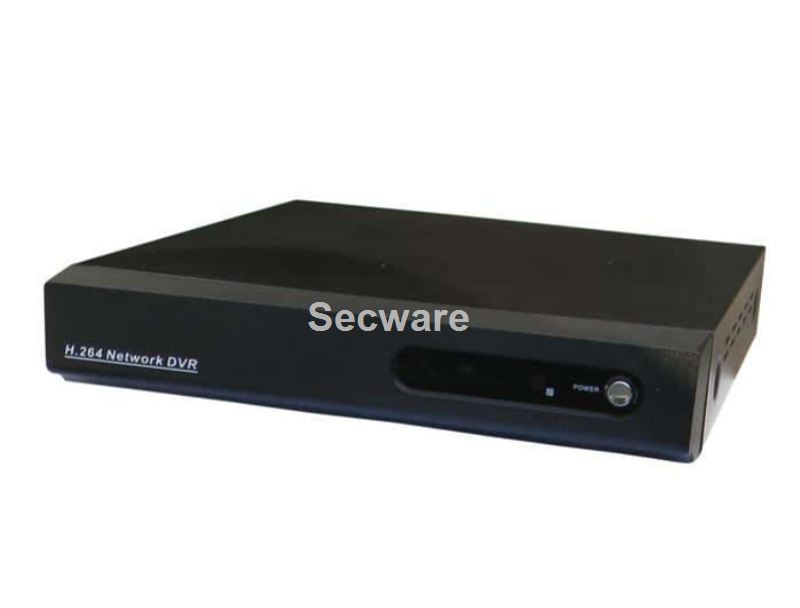

Genie 8 Channel 500GB HDD Pentaplex Digital Video Recorder

OBSOLETE - No longer available



Product Overview

8-Channel Entry Level Digital Video Recorder, Compact Size, H.264 Compression, Free Client Software, Real Time Recording (CIF), 2 USB Ports (One for Mouse Control), 500GB / 1TB / 2TB Storage Options, Remote Control & Mouse (Supplied), DC 12V

Features

  • Compact Size
  • H.264 Video Compression
  • Pentaplex: Recording / Playback / Backup / Network Transmission / Mobile Browsing
  • 2x USB2.0 Interface
  • Free Client Software
  • Manual, Motion and Alarm Recording Mode
  • IR Remote & Mouse Control (Supplied)
  • Mobile Phone Browsing
  • Hard Disk Storage Options: 500GB / 1TB / 2TB
  • DC 12V

Technical Details



Model NumberLTDVR8
Video InputBNC x 8
Composite Video Input1.0Vp-p / 75Ω
Video OutputBNC x 1, VGA x 8
Composite Video Output1.0Vp-p / 75Ω
CompressionH.264
Recording ResolutionD1: 704 × 576, Half D1: 704 × 288, CIF: 352 × 288
Recording Rate (PAL)D1: 50fps / HD1: 100fps / CIF: 200fps
Playback8 Channel playback at the same time
Recording ModeManual, Motion Detection, Alarm
Audio InputRCA x 1
Audio OutputRCA x 1
Audio CodeADPCM
Alarm Input / Output1 In 1 Out
I/O InterfaceRS485 x1, RJ45 (10M/100M)
Backup InterfaceUSB2.0 x2
HDD1
Remote / Mouse ControlYes
PTZ ControlYes
Power SupplyDC 12V
Power ConsumptionMax. 3A
Dimensions (W x H x D)320 x 110 x 300mm
Weight2Kg





  • Model: LTDVR8/500
  • Shipping Weight: 2 kgs
  • Manufactured by: Genie CCTV
