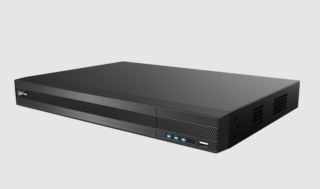

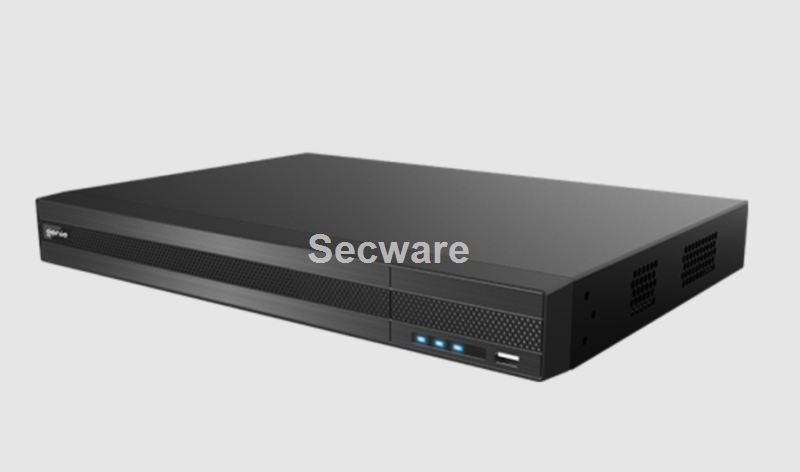

Genie 16 Channel 5-In-1 High Definition 1080P Dvr With 1Hdd Bay And Alarms

Name: Genie 16 Channel 5-In-1 High Definition 1080P Dvr With 1Hdd Bay And Alarms
Brand: Genie CCTV
SKU: WAHD2161A
Price: 312.21 GBP
Availability: InStock

(image for) Genie 16 Channel 5-In-1 High Definition 1080P Dvr With 1Hdd Bay And Alarms

larger image

The Genie WAHD2161A is a 5-in-1 DVR compatible with AHD, TVI, CVI, CVBS and IP cameras available in 4 and 8 channel formats. The DVR has the ability to connect to analogue and IP cameras simultaneously and encode the video streams using the H.265 high profile compression format which gives longer recording times compared to H.264 encoding. Real time recording is achievable up to 1080p video supporting resolution up to 5MP in AHD, TVI and IP. The WAHD2161A is a highly versatile cost effective solution suitable for many CCTV applications.

Supports 16 CH TVI/AHD/TVI 5MP/4MP 1080p/720p/WD1 video input
Supports 8 CH 5MP/4MP/3MP/1080p/960p/720p IP video input by default
Standard H.265 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface (GUI), Window style operation by mouse
Multi-mode recording: Manual/Timer/Motion
Playback : 16 CH simultaneous playback
Multi-user online simultaneously
Search: Time Slice, Time, Event (Manual, Motion), Tag Search
Express and flexible backup via USB, Network and so on
Pentaplex: Preview, Record, Playback, Backup and Remote Access
DHCP, DDNS, PPPoE Network Protocol
Remote control via Web Client or CMS: Preview, Playback, Backup, PTZ and Configuration
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
P2P ready for hassle free remote access
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Authorisation management, log review and device status review
1080p output, true high resolution display
Support NAT function and QR code scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Android OS

OS	Embedded Linux
Analogue Video Input	BNC x16 BNC interface (1.0Vp-p, 75Ω) TVI / AHD / CVI : 5MP / 4MP / 1080p / 720p / WD1 (Live)
IP Video Input	8CH (Up to 16CH) Up to 5MP @ 30fps
Total Input	24CH
Audio Input	RCA x8
Audio Output	RCA x1 (Linear, 600Ω)
Two-Way Audio	Take up channel one audio input
Compression	G.711(U/A)
Record Resolution	5MP Lite / 4MP Lite / 1080p / 1080p Lite / 720p / WD1 / D1
Frame Rate	Analogue Channel: 5MP Lite @ 10fps (PAL / NTSC) 4MP Lite / 1080P @ 12fps (PAL) / 15fps (NTSC) 1080p Lite / 720p / WD1 / D1 @ 25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC)
Bit Rate	32Kbps ~ 4Mbps
Mode	Manual, Timer, Motion, Smart Event
Mobile OS	iOS, Android
Storage	HDD: SATA x2, Up to 8TB per HDD, E-SATA x1
Playback	16CH
Search	Time Slice / Time / Event / Tag Search
Smart Search	Highlight colours to display the camera record in a certain period of time, different colours refer to different record events
Function	Play, Pause, FF, FB, Digital Zoom, etc.
Alarm Mode	Manual, Motion, Exception, Smart Event
Input	16CH
Output	4CH
Network Interface	RJ45 1000Mbps x 1
Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth	32Mbps (Max. 64Mbps)
Outgoing Bandwidth	96Mbps
Remote Monitoring	Immix: Compatible with Immix via RTSP only (2-way audio not supported) Sentinel: Yes, Firmware 1.1.0 or later
Sentinel	Yes, Firmware 1.1.0 or later
Local Backup	USB stick, USB mobile HDD
Network Backup	Yes
Port	RS485: Yes (Half-duplex), Connect to PTZ or Keyboard USB: USB 2.0 x 2 Remote Controller: Optional
Power Supply	DC12V / 4A
Consumption	≤15W (Without HDD)
Working Environment	-10~50°C, 10%~90% (Humidity)

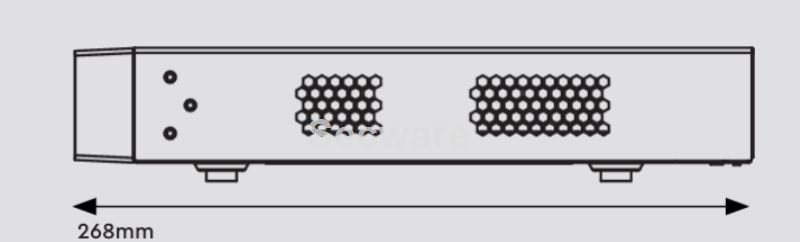

Dimensions	300 x 268 x 45 mm
