ACT Pro 1000 1 door Controller

OBSOLETE - Alternative Click here

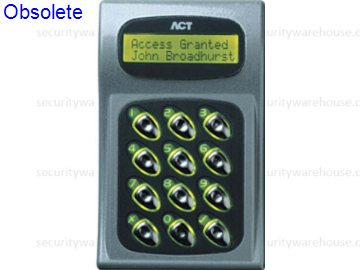

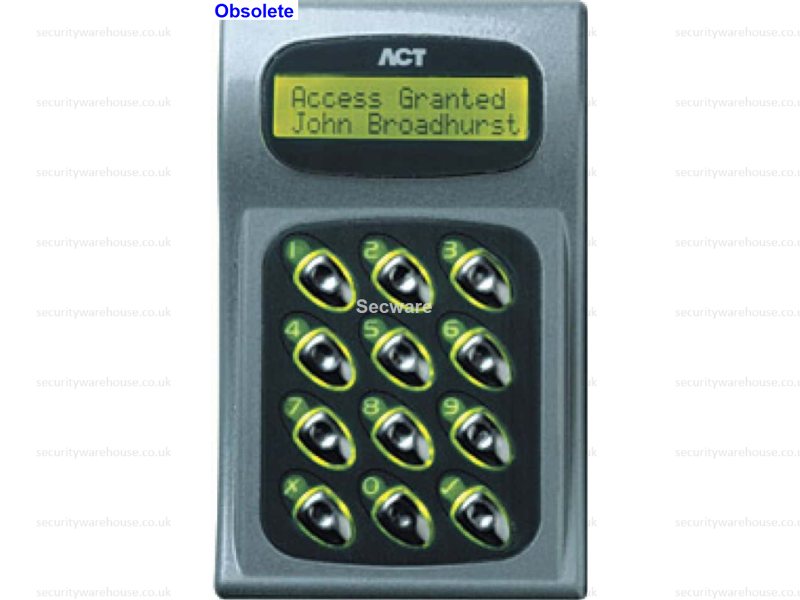

ACTpro 1000 Single Door Controller

The ACTpro 1000 supports up to 10,000 users, making it ideal for scalable access control solutions. With an integrated LCD display and backlit keypad, it offers intuitive operation for both installers and system administrators.

This unit can function in standalone mode or be networked to a PC using the ACTWin Pro software for enhanced management and monitoring.

Main Features

• Single door controller
• The ACTpro 1000 may be in turn networked with other ACTpro 1000s to create a network of up to 256 doors
• RS485 interface to network controllers
• 10,000 users
• 16 user groups
• 16 time zones
• Entry and exit reader support
• 500 event log
• 1000 user codes (Pin Only)

Installation / Specification Guidelines

• The ACTpro 1000 requires a 12 volt dc supply
• The controller may not be installed outdoors unless it is in a sealed and heated cabinet
• The ACTpro 1000 controller may be networked via RS485 to expand the system up to 256 doors maximum
• The maximum amount of ACTpro 1000s per RS485 output is 32 (ACT supply a 4x485 or 1x485 interface for PC networks)
• The ACTpro 1000 is compatible with ACTWin pro and ACTWin pro Lite software packages
• The ACTpro 1000 will operate standalone or can be connected to a PC
