Genie 4 Door 8 Reader OSDP PoE Door Controller

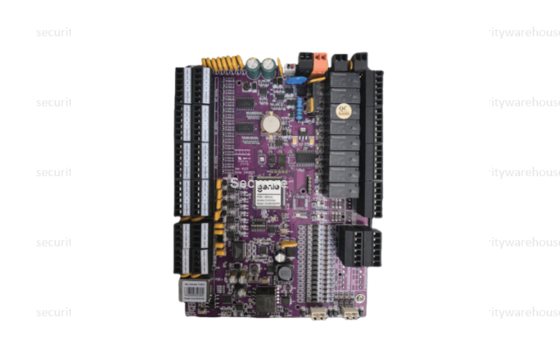

The Genie DC48OSDPIP is a 4 door and 8 reader (4 in and 8 out) controller with 6amp 12V DC Power Supply in Metal Housing.
Supplied in a sturdy metal box with hinged lid, the DC48OSDPIP includes cable management and a 6 Amp DC12V power supply as well as being compatible with most Wiegand and OSDP devices at the same time.
It can be used in a standalone or networked configuration mode (TCP/IP) It also offers a comprehensive on board programmable I/O module allowing the installer to fully programme I/O’s via input/output action or by 255 real world event scenarios.
Key Features
- 32 bit ST ARM® CortexTM-M4 processor
- 10/100M based TCP/IP communication
- Power over Ethernet (POE+, 30W)
- Fit to DIN rail installation
- Backup battery interface, battery inspect
- Compatible with both Wiegand and OSDP reader at the same time
- Compatible with all Wiegand reader formats from 24 to 72 Bits
- 24 sets of flow control & lockdown feature
- Supports master + slave cards, multi groups cards
- Supports double confirmed by centre
- Supports user PIN identify
- Supports anti-passback
- Multiple door status working modes
- Long memory storage up to 20 years during power off
- CE, FCC, RoHS Certificated
Technical Specification
| Weight | 3.02 kg |
| CPU | 32 Bits ARM® Cortex-M4 Processor |
| Cardholder Capacity | 100,000 Cardholders (250,000 extendible) |
| Data Memory | 512KB RAM+64MB Flash |
| Backup Battery | 1 Lithium battery backup (up to 20 years data retention) |
| Door Relay (NC/NO) | 4 |
| Door Sensor (NO) | 4, Supervisor (4 Status) |
| Exit Button | 4 |
| Auxiliary Output | 4 |
| Auxiliary Input | 4, Supervisor (4 Status) |
| Wiegand reader | 8 pieces |
| TCP/IP | 10/100M based |
| Transaction Storage | 1,000,000 logs (1,500,000 extendible) |
| Operating Voltage | 12VDC (±10%) |
| Operating Current | ≤200mA |
| Standby Current | ≤150mA |
| Working Temperature | -40°C~70°C |
| Metal case dimensions | 403 x 384 x 72mm |
