Videx Lockable IP55 Boxed 2 door controller c/w PSU

£303.00 Ex VAT

  • Model: PPCU3
  • Shipping Weight: 0.9kgs
  • Manufactured by: Videx
Qty:

More info about this product

Lockable IP55 Boxed 2 Door Controller (RS485) complete with 3.5a PSU

The Portal Plus allows great flexibility in the design and installation of an access control system, having a modular design and facilities for proximity, bio-access and coded access readers.

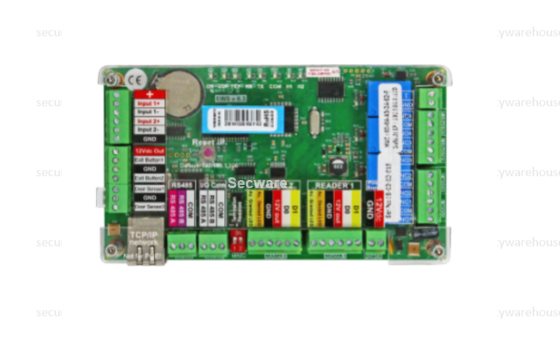

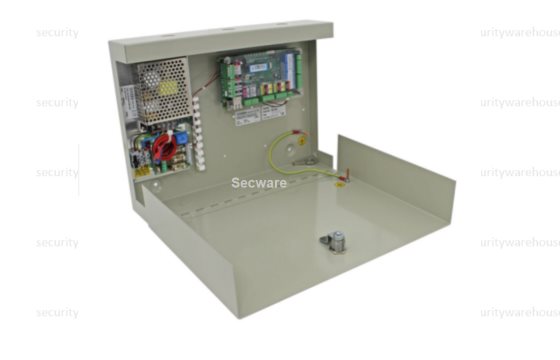

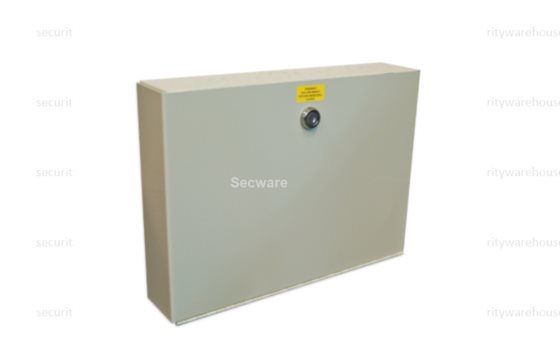

A lockable IP55 metal enclosure with a 2 entrance Portal Plus access control card and 3.5A 13.8Vdc switched mode power supply. There is also room in the enclosure for a 7Ah 12V battery (Not included). The PSU has three independently fused outputs, battery trickle charge circuit and output healthy LED's. The controller includes RS485 connectivity to other cards and a PC as well as 2xreader inputs, 2xlock outputs (Dry contact change over relays), 2xpush to exit button inputs, 2x door monitoring inputs, 2x free inputs for programmable services and 2x dry contact relay outs for programmable services.

Technical Details

Dimensions - 300mm(W) x 300mm(H) x 150mm(D)
Material - Powder coated steel
Lockable - Yes
Control PCB - 2 door
Communication protocols - Wiegand, RS485
Aux inputs - 2
Aux outputs - 2
Power supply - 13.8Vdc 3.5A (Three fused outputs)
Battery back up facility - Yes
IP rating - IP55


Accepted Cards
