Siemens 2-door Expander

Description

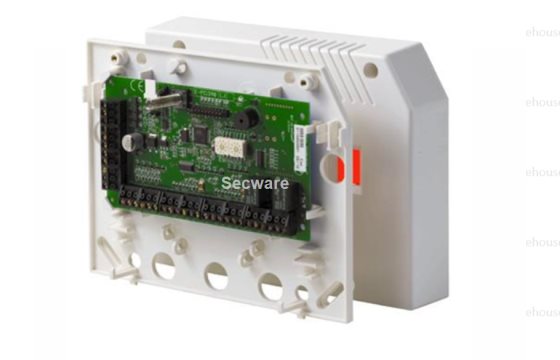

The SPCA210.100 2-door expander extends the SPC controller with advanced door control functionality for 2 entry doors or 1 entry/exit door. The device features 2 Wiegand/Clock&Data interfaces, 4 LED control outputs (1 void / valid per reader), 4 zones (1 position- and 1 opening switch per door), 2 relay outputs (1 lock per door) and an on-board buzzer to signal "door open too long" events.To allow greatest flexibility, the zones and outputs are freely programmable for other purposes if not used for door control. Up to 512 priority card holders can be stored on the expander for standalone operation in case of communication loss to the control panel. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.

Technical data

Number of on-board zones	4, for door release switch (DRS) and door position switch (DPS), or freely programmable
EOL resistor	Dual 4K7 (default), other resistor combinations configurable
Number of on-board relays	2, for door locks or freely programmable (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
LED Indicators	4 outputs (1 void and 1 valid per reader)
Number of card reader	2
Interfaces	X-BUS (in, out, branch), Reader 1, Reader 2
Tamper contact	Front spring tamper
Operating voltage	9.5 ~ 14 VDC
Operating current	Max. 80 mA at 12 VDC (all relays activated)
Quiescent current	Max. 45 mA at 12 VDC
Operating temperature	-10 ~ +50 °C
Mounting	Flat surface, wall-mounted
Colour	RAL 9003 (signal white)
Weight	0.360 kg
Dimensions (W x H x D)	200 x 153 x 47 mm (housing), 150 x 82 x 20 mm (PCB)
Housing	Plastic housing (ABS)
