Junior Handy Little Relay 12V DC Strip of 4

larger image

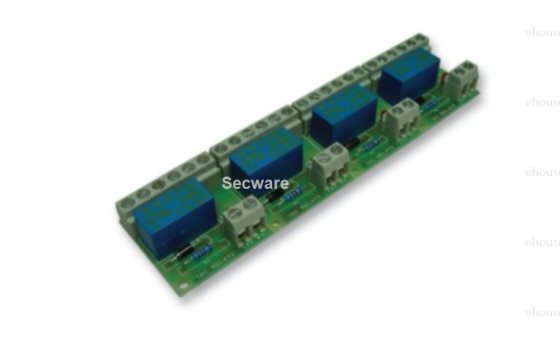

Junior Handy Little Relay 12V DC Strip of 4

A smaller version of our popular HLR12.

This relay is polarised and is therefore suitable for alarm bell circuits therefore it must be wired the correct way round for it to operate. There is also a back EMF suppressing diode.

Key Features

Supply Voltage: 12VDC
Coil Resistance: 720Ω
Nominal Current: 16mA
Output: Two Pole Change Over relay contacts, volt free (dry).
Rated at: 2A at 240VAC, 2A at 30VDC
Indicator: Red LED
Dimensions: 35mm W x 131mm L x 14mm H – 4 modules in a strip and can be broken down in to singles, doubles or triples as required.
