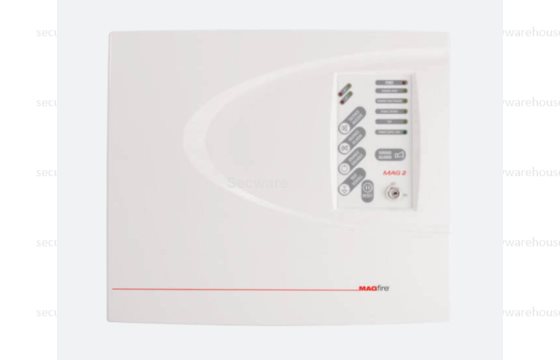

ESP 2 Zone Fire Panel
ESP’s Fire Protection range is built to deliver the perfect balance of performance, reliability, and visual appeal. Fully CPR compliant and certified to EN54 standards, the range offers a complete solution for professional fire alarm installations—covering two-wire, conventional, and addressable systems. With durable, high-quality components designed for straightforward installation and long-term dependability, it’s everything you need to ensure full compliance and peace of mind.
Key Features
- Active end of line monitoring and head removal
- Unlimited number of call points per zone
- Integral sound alarm button
- Class change' facility
- Enable/disable security key
- One man walk test facility
- Volt free fire change over relay
- Volt free fault change over relay
Technical Specifcation
| Materials | ABS |
| Mounting | Surface |
| Supply Voltage (V AC) | 230 |
| Power Availability (A) | 0.7 |
| Standby Supply | Up to 12V 7Ah (Battery Calculation Required) |
| Mains Fail Consumption (mA) | 50 |
| Wiring Type | 4-Wire Conventional |
| Zones | 2 Detection Zones 2 Sounder Circuits |
| Dimensions (mm) | 340 x 290 x 100 |
