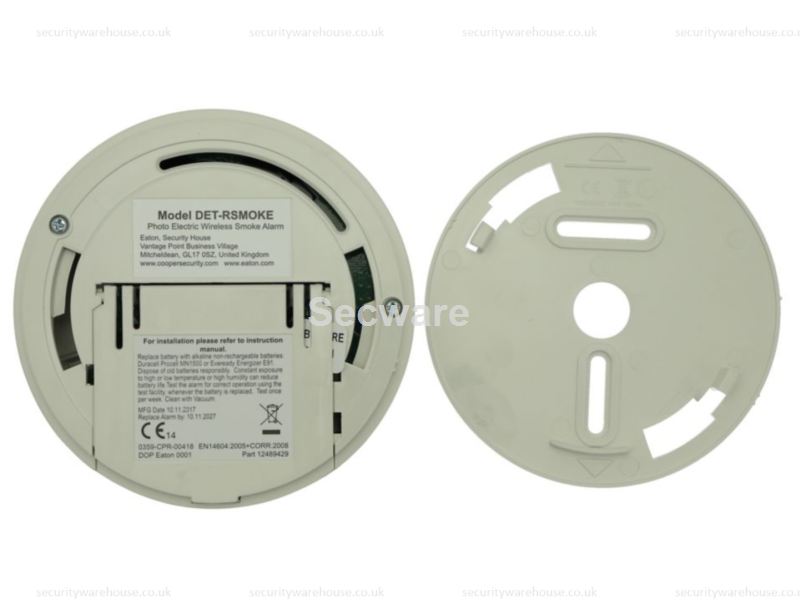

The DET-RSMOKE is an optical radio smoke detector designed to work with Eaton’s range of radio and hybrid control panels.
Providing a flexible solution to smoke detection, it has its own built-in sounder for local alarms and can be programmed to trigger control panel sounders.
Using Eaton’s proven leading radio technology the device is compatible with i-on, and all legacy 868 systems. Installers can utilise the full range of communications options across the panel ranges.
The DET-RSMOKE is ideal for use in a range of premises but it is not designed to substitute EN54 Systems
At a glance...
- Independently certified to EN14604
- Uses AA alkaline batteries
- Twist and lock installation for easy fitting and removal
Technical Specification
| Product code |
DET-RSMOKE |
| Connection |
Radio |
| Operating humidity |
up to 95% |
| Operating temperature |
-10°C to +65°C |
| Material |
Plastic |
| Battery type |
3 x AA Alkaline |
| Battery service life |
24 months |
| Environmental class |
II (tested to -10°c + 65°c) |
| Operating Frequency |
868.6625 MHz |
| Tamper protection |
Yes |
| Compliance |
Independently certified to EN14604 |
| Dimensions |
122mm (diameter) x 50mm (h) |
Eaton Was Scantronic
