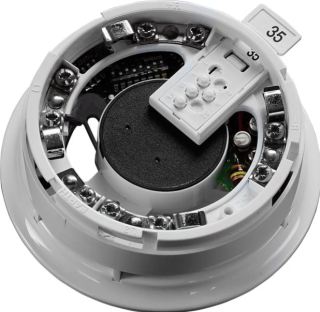

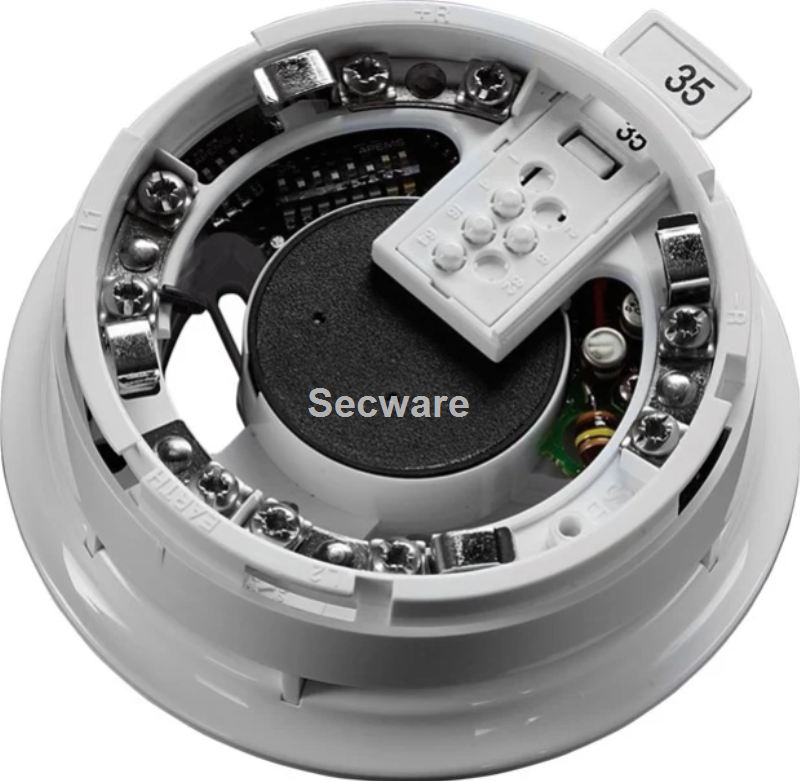

Apollo Xp95 Sounder Base

The sounder base comprises of a base sounder with integral mounting base and is for use with Discovery or XP95 ranges. It is designed for indoor use.

  • Two tones
  • Two volume ranges 55-75dB(A) and 75-91dB(A)
  • Individual and group addressing
  • Unique acoustic self-test
Warranty10 year
ApprovalsCPR
PolarityL1 & L2 are polarity sensitive
Protocol voltage (max)9V
Protocol voltage (min)5V
Protocol voltage5 to 9V peak to peak
Power-up surge current1.2mA
Maximum power-up time<1 second
Quiescent current200μA
Quiescent current tested at24V dc
Supply voltage (max)28V dc
Supply voltage (min)17V dc
Supply voltage (Vmin-Vmax)17 to 28V dc
Materials housingPolycarbonate
Product length38mm
Product diameter115mm
Weight140g
Product length1.5in
Product diameter4.53in
Humidity0% to 95% (no condensation or icing)
Humidity (max)95% RH
Humidity (min)0% RH
Humidity Noteno condensation or icing
Operating temperature-20 to 60°C
Operating temperature (max)60°C
Operating temperature (min)-20°C
IP rating ValueIP21D
Operating temperature (min)-4°F
Operating temperature (max)140°F
Operating temperature-4 to 140°F



  • Model: 45681-278
  • Shipping Weight: 0.5 kgs
  • Manufactured by: Apollo
