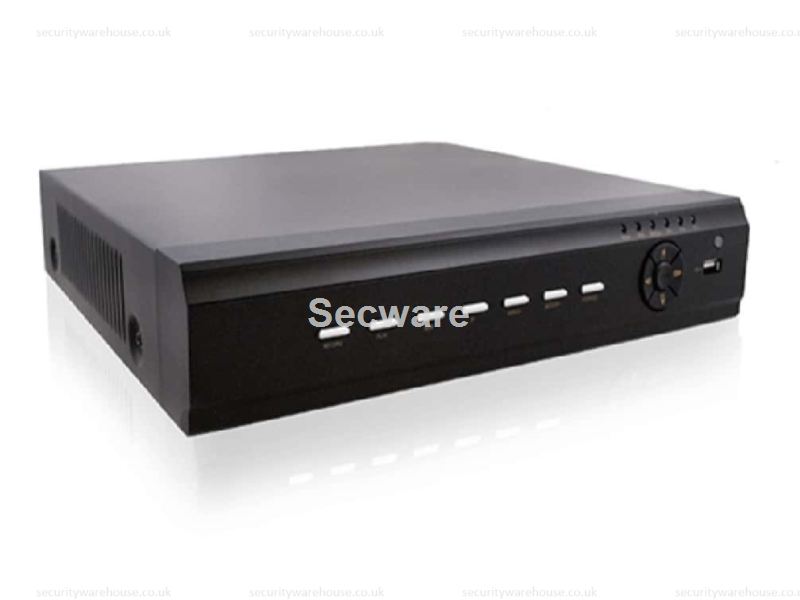

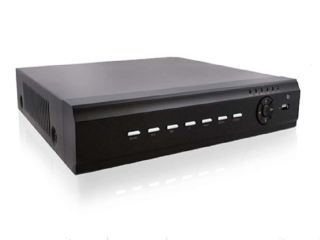

PRO-VIEW 8 CHANNEL DVR (1TB HDD)

 The DVR can accept video signals from analogue (960H resolution) or AHD (720P / 960P resolution) cameras.


Features:
• Records at 25 frames per second (FPS) per camera at 960H resolution
• Records at 12 frames per second (FPS) per camera at 720p / 960p resolution
• 1TB hard drive pre-installed and ready to record
• Remote viewing from PC, Mac and Apple / Android mobile devices
• Email notifications of events
• Intelligent video motion detection
• HDMI, VGA and BNC video outputs

 Plug & Play Camera Setup

 When you connect an analogue or AHD camera into the PV108, the image from the camera is instantly detected and displayed on your monitor. There is no additional setup to perform.


Recording
The PV108 can record at up to 25FPS per camera (also known as real time) when in 960H resolution using analogue cameras. When the higher 960p resolution is used for AHD cameras, the maximum recording rate drops to 12FPS per camera.



Remote Viewing
Users can view their cameras live or play back recorded footage directly from a Windows PC, Mac and Apple / Android mobile devices. Other remote functions include 2 way audio to speak into site (only available via mobile devices), remote relay trigger and remote video backup. All versions of the iWatch DVR software are free to download and use.


Storage
The PV108 can accomodate 1 hard drive up to 6TB in size. Once the hard drive becomes full, the PV108 will automatically begin recording over the oldest footage on the hard drive.



Estimated recording times with a 1TB hard drive at 960H resolution for 8 cameras:
• 4 Days at 25FPS per camera
• 6.5 Days at 15FPS per camera
• 7.5 Days at 12FPS per camera
• 9 Days at 9FPS per camera
• 11.5 Days at 6FPS per camera
• 15 Days at 3FPS per camera
• 19.5 Days at 1FPS per camera
