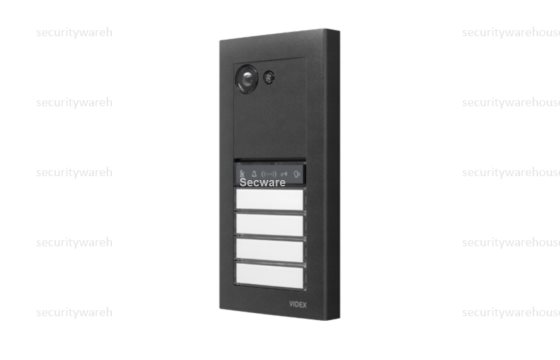

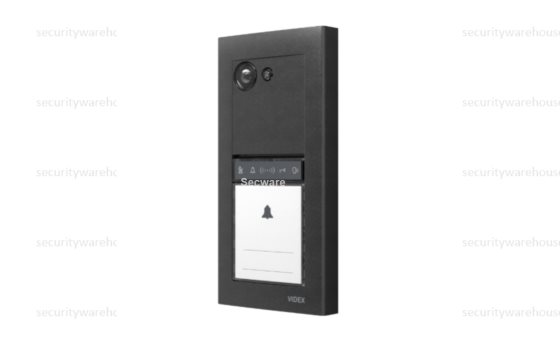

Videx ERA Video Panel
The ERA series colour video entry panel has been designed to work with the popular VX2300 2 wire BUS system. It is a surface mount compact and robust video entry panel with a built-in high quality CMOS (976×582 pixel) colour camera with a 65° vertical and 90° horizontal viewing angle & bright white illumination LED. It is available in the popular gun metal grey finish.
It also incorporates DDA compliant call progress LEDs (system busy, call in progress, speak and door open), voice assistance and acoustic signals for the visually impaired. Other notable features include integrated Mifare/NFC proximity access, a 6 button coded access feature and call button configuration facility (1 button call, 2 button call, 4 button call or 1 button call with 6 button coded access).
With a common 2 wire BUS that uses two non-polarity twisted pair wires it allows for simplified installation and can also be expanded up to 8 entrances with up to 4 videophones/monitors per apartment. The integrated Mifare/NFC proximity access feature also allows a user to use the VIDEX virtual fob app (which is free to download from Google Play and coming soon to the App Store) on their smartphone allowing a user to open door locks and gates directly using their smartphone.
Key Features
- Common 2 wire BUS that uses two non-polarity twisted pair wires allowing for simplified installation.
- Expandable up to 8 entrances (using 2301, 2-4 entrance units) with up to 4 videophones per apartment.
- Incorporates a CMOS 976x582 (PAL) colour camera with 65° vertical and 90° horizontal viewing angles and white illumination LED.
- DDA compliant call progress LEDs, voice assistance and acoustic signals for the visually impaired.
- Integrated Mifare/NFC proximity reader able to read Mifare fobs/cards (ISO IEC 14443A).
- Program up to 2000 proximity fobs/cards.

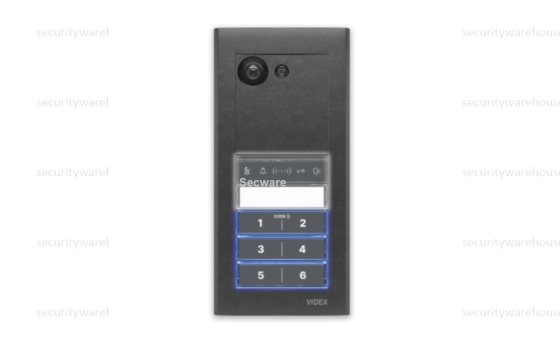

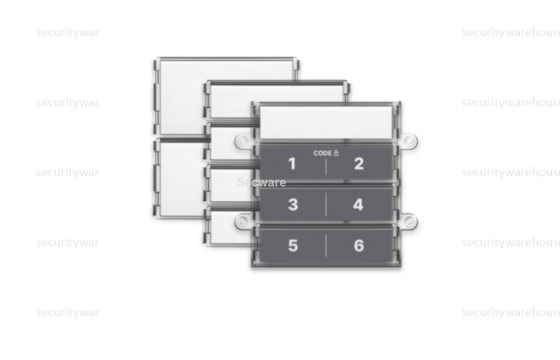

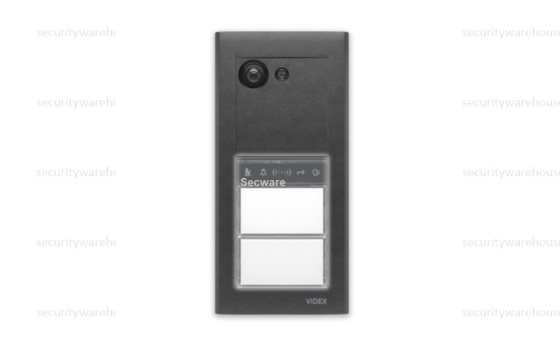

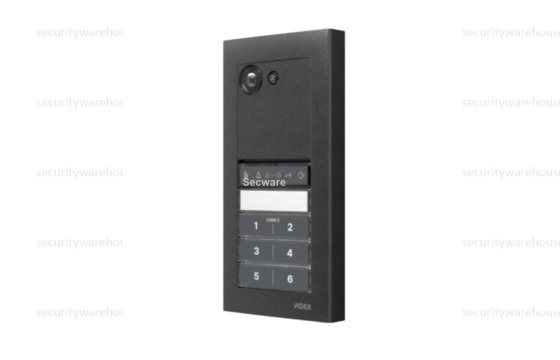

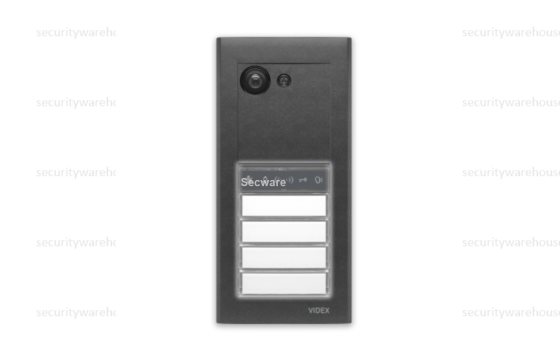

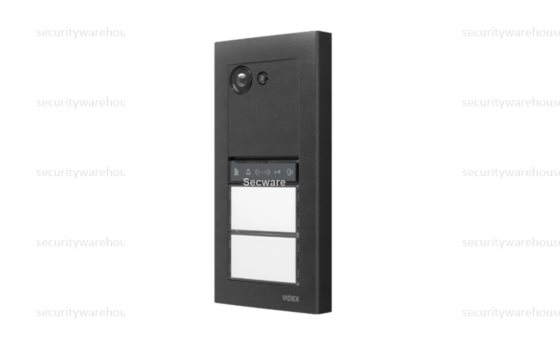

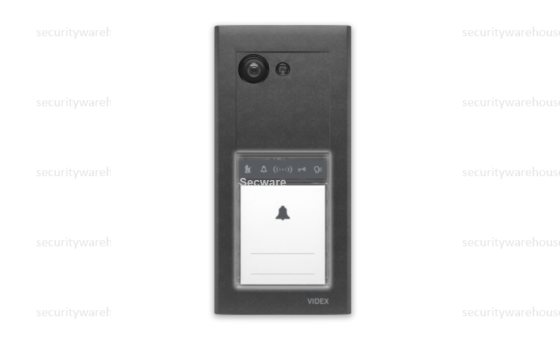

- Call button configuration for 1 button, 2 button, 4 button or 1 button + 6 button coded access.
- Program up to 400 access codes (using 1 - 6 digits only).
- 1 push to exit input.
- 2 relay outputs with one output incorporating a capacitive discharge configuration option (12Vac/dc 1A max.).

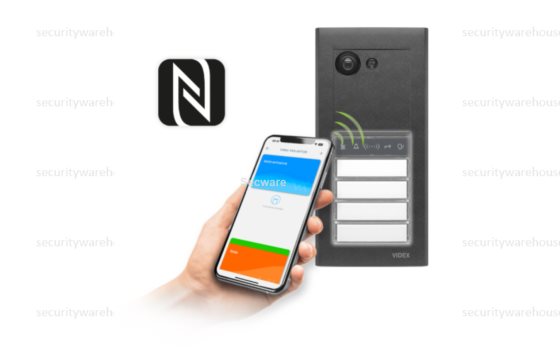

- Compatible with the VIDEX virtual fob app available for smartphones.
Technical Specification
| System | VX2300 digital (true 2 wire) |
| Camera | CMOS colour camera (976×582 pixel – PAL) |
| Backlight | Yes |
| Proximity access | Integrated Mifare/NFC proximity reader |
| Proximity access capacity | Up to 2000 user fobs/cards |
| Coded access capacity | Up to 400 codes |
| Adjustments | Voice assistance volume, audio balance, mic & speaker controls |
| Inputs/Outputs | 1xPTE input/2 relay outputs |
| Power supply input | 32-35Vdc via 2 wire BUS (supplied by 2321S PSU) |
| Compatible PSUs | 2321S, 2321P |
| Compatible videophones/monitors | 6286, 6388, 6488, 6788 and 6789 |
| Current consumption | 75mA (standby), 100mA (during operation) |
| Frame protections | IK09 impact protection & IP65 ingress protection |
| Working Temperature | -20°/+60° |
| Mounting/finish | Surface mount only, gun metal grey finish |
| Dimensions (mm) | 96(W) x 200(L) x 29(D) |
