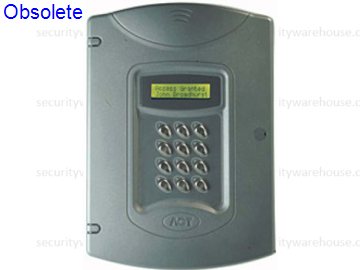

ACT Pro 3000 2 Door Controller

OBSOLETE - No longer available

The ACTpro 3000 is a two Door Controller extending to a total of sixteen doors via ACTpro 100 Door Expanders.

Up to 128 ACTpro 3000 units may be networked via a PC interface to facilitate up to 2,000 doors.

• 2 door controller expandable to 16 doors using ACTpro door stations
• 30,000 users
• 1,024 user groups
• networkable to 2000 doors
• PC connection using the built in
• TCP / IP or serial (RS232) port or RS485 (RS485 to serial converter required)
• serial port may be used to connect a printer
• “Clock & Data” and “Wiegand” format readers
• supports ACTpro-X & 3rd party readers
• memory card slot allows additional functionality:
• door plan, extra user rights, distributed intelligence
• requires 12 volt DC supply
• stores 5,000 log events
• monitored tamper of mains present
• programmable inputs & outputs
• each door has a 5amp, 30 volt DC lock relay and a 1amp, 24 volt DC alarm relay
