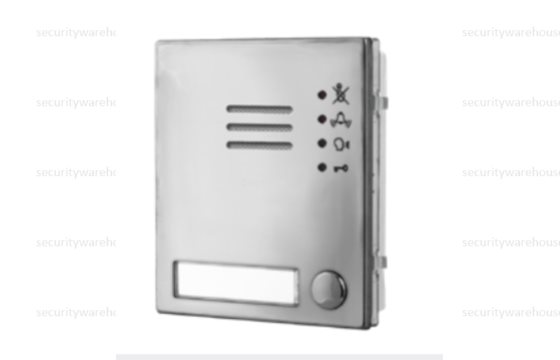

Videx 4204X-1/M 1-Button Speaker Module with Proximity Reader for VX2200
Product Overview
4000 Series speaker module with a built-in proximity reader (4204X) for the VX2200 digital system. The speaker module is available with either 0, 1 or 2 buttons, however additional buttons can be added using a combination of the 4042, 4043, 4044 and 4045 IDC button expansion modules. The name plate windows are illuminated blue and the speaker also features 4 call status LED's alerting the user when the system is busy, a call is in progress, when to speak and when the door is open. The built-in proximity is located behind the nameplate window for button 1 and is capable of storing up to 60 user fobs / cards, however, this can be increased up to 1000 using the 2X00PC software. The modules contain a speaker and fly lead with microphone which is easily fitted into a 4000 series front frame. Modules attach to the 4000 Series housing frames using a simple but strong clip-in system which can be secured in place using an anti-tamper clip fixing. Speech levels can be adjusted using separate controls for the speaker, microphone and balance. All the modules above are available in a matt finish 316 marine grade stainless steel (suffix /M), mirror stainless steel finish (suffix /S) or gun metal grey (suffix /BL)
Main Features
- Call reassurance tones and DDA compliant call progress LED's
- Blue back-lit name plate windows
- Compatible with the full range of 4000 series surface and flush back boxes
- Multiple call button configurations using additional 4000 series IDC button expansion modules
- Speech volume adjustments via the mic, speaker and balance control POTs
- Simple and strong clip-in module system with anti-tamper lock fixings
- Built-in proximity access reader
- Store up to 60 user fobs / cards (expandable up to 1000 users with 2X00PC software)
