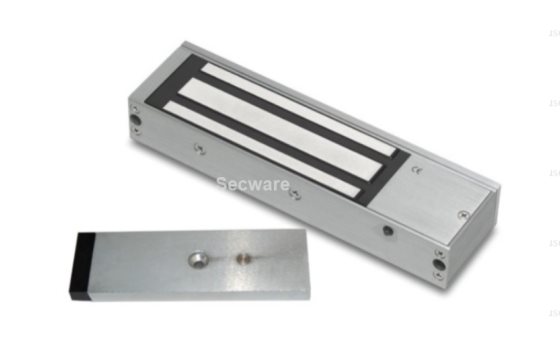

SSP Standard Monitored Maglock with Door Status Monitor

SSP Monitored Maglock

SSP Contract Locking Standard Monitored Maglock with Door Status Monitor 545kg 12/24 VDC.

Standard monitored magnetic lock designed for indoor applications where 545kg holding force is required.

LED lock status indication and relay contacts for signalling. This model includes door status monitoring contacts to monitor the door position.

Key Features

• MOV provides spike and surge protection
• Fail-safe operation (power to lock)
• Anti-residual magnetism protection
• Top-plate, armature-plate and fixings included
• Dual voltage 12Vdc or 24Vdc (selectable)
• Surface Mount
• Silver anodised aluminium finish
• Lock monitoring and Door status monitoring
