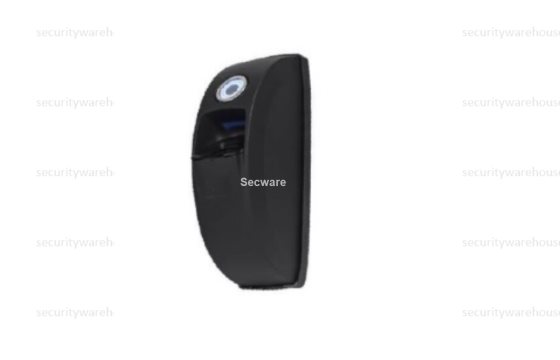

CDVI Micro Biometric Fingerprint Reader
The IEVO-M+ by CDVI is a compact fingerprint reader for internal use only and comes with a built-in card reader for added flexibility.
The micro™ is a compact fingerprint reader designed for internal use only, ideal for securing small to medium sized facilities. It uses an optical sensor and delivers a fast and reliable biometric solution, saving time and costs to any business.
The fingerprint reader is enabled for 128-bit data transmission and provides highly accurate and quality images to be transferred to the Interface Board, where the data is securely stored. Here it performs 1:N matching of up to 50,000 fingerprint templates.
This model comes with a built-in card reader for added flexibility.
Key Features
- Biometric fingerprint reader for internal use, clean & low footfall environments
- Up to 50,000 fingerprints via interface board
- Built-in RFID card reader module
- Customisable RAL colours (on request)
- ISO PAD Level 1 compliant (when spoof detection is enabled)
Technical Specification
| Technology | Optical sensor, Wiegand |
| Security Level | AES128-bit encryption to Interface Board (on request) |
| User Limit | 10,000 or 50,000 (dependent on Interface Board) |
| Mounting | Surface (flush mounting kit available) |
| Min Temperature (°C) | 0°C |
| Max Temperature (°C) | +60°C |
| Resolution | 500dpi |
| Recommended Mounting Height | 120cm |
| Min. Voltage (V) | 12 Vac/dc |
| Max Voltage (V) | 24 Vac/dc |
| Voltage AC/DC | AC/DC |
| Consumption (mA) | 400mA |
| Wiring Distance | 90m to Interface Board (max), 75m to access control board (max) |
| Surface Material | PC/ABS mix |
| Colour | Black or custom RAL colour (on request) |
| Product Height (mm) | 155 mm |
| Product Width (mm) | 55 mm |
| Product Depth (mm) | 70 mm |
