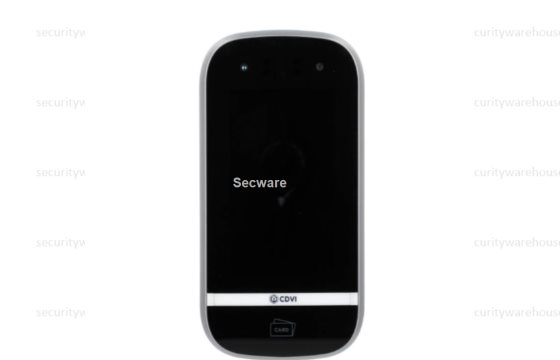

CDVI IEVO 12-24V High Speed Facial Recognition Terminal
The ievo iface™ is an advanced face recognition terminal designed for fast, secure, and fully touchless access control. Combining high-accuracy facial
recognition with efficient image processing, it delivers reliable authentication in a wide range of environments.
Engineered for performance and user convenience, the ievo iface™ features dual cameras, including Near Infrared (NIR) technology, to ensure precise face detection and matching in varying lighting conditions.
It enables rapid authentication and authorisation in as little as 3 seconds, supporting smooth and secure user flow.
Versatile by design, the terminal can be installed on walls, desks, or integrated into turnstiles, making it suitable for multiple access points and configurations.
For added flexibility, it includes a built-in RFID card reader supporting MIFARE® DESFire®, enabling seamless multi-technology access control.
Key Features
- Highly accurate biometric facial recognition terminal
- Dual camera for optimised facial matching & detection
- Automatic capture of people
- High speed face matching
- Built-in MIFARE® DESFire® card reader
- Capacity for up to 20,000 templates
- 12-24V power supply
Technical Specifcation
| Technology | MIFARE® DESFire® EV1 and FeliCa® |
| Security Level | High |
| User Limit | 20,000 (1:N mode) |
| Mounting | Surface |
| Min Temperature (°C) | 0°C |
| Max Temperature (°C) | +45°C |
| Screen size | 5 inches |
| Memory | 8GB Flash, 2GB RAM |
| Recommended Mounting Height | 135cm |
| Min. Voltage (V) | 12 Vdc |
| Max Voltage (V) | 24 Vdc |
| Voltage AC/DC | DC |
| Consumption (mA) | 500mA |
| Contact Rating | 3.0A |
| Wiring Distance | 100m (standard network connection) |
| Surface Material | Polycarbonate |
| Product Height (mm) | 200 mm |
| Product Width (mm) | 100 mm |
| Product Depth (mm) | 36 mm |
| Product Weight (kg) | 0,450 kg |
