Videx VX2300 2 Wire BUS Power Supply

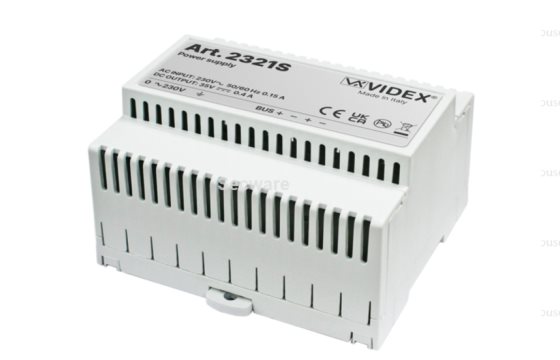

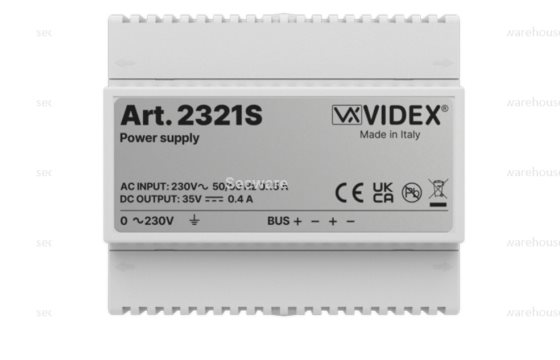

Videx 2321S Power Supply

The 2321S PSU is a VX2300 2 wire BUS power supply for use with the ERA series video entry kits. It can be used to power one ERA23VB series video entry panel and a maximum of up to 20 devices. It can also be used to locally power up to 2 VX2300 series videophones/monitors within the same apartment. It is a surface mount PSU that can be fixed directly to a wall or using a DIN rail.

Key Features

• 35Vdc, VX2300 2 wire BUS power supply.
• 3 level voltage adjustment: 35Vdc (L), 36Vdc (M), 37Vdc (H).
• Surface mount: directly to wall or via DIN rail.

Technical Specification
