BPT Audio/Video Module for IP360 System

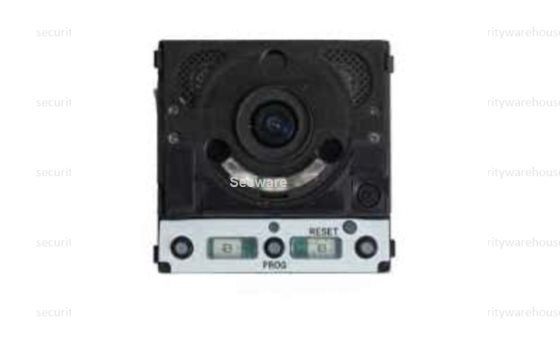

BPT Audio/Video Module

Electronic module with techno-polymer body and 2 call buttons with double, blue or white, namecard backlighting. Video camera sensor with HD 1280 x 720 resolution and HDR technology, plus built-in microprocessor for digital signal processing. Ultra wide-eye grand angle lens with 130° horizontal and 95° vertical opening and digital zoom adjustment.

Even illumination of the subject with 2 high-efficiency white LEDs and anti-glare diffuser. Featuring a local control for electric lock, auxiliary contact (1A, 30V max), inputs for door lock release button and for door status indication (programmable I/O), output for activation of outdoor cameras (programmable I/O). RJ45 port for network, PoE or local connection.

The front is equipped with LEDs for visual indication of the system status. On-board web server for configuring and updating firmware. Can be manually programmed. To be completed with a video intercom front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection rating.

Key Features

• 2 call buttons
• 2 on-board controls: electric lock and auxiliary control (1A, 30V max)
• "Ultra wide-eye" lens, aperture 130° horizontally and 95° vertically
• HD resolution and High Dynamic Range (HDR) technology for better light/dark performance
• High efficiency illuminator (adjustable brightness) with anti-glare diffuser
• LED pictograms for status alerts: door opening, active communication, call in progress and system busy
• Adjustable speaker, microphone and electric lock from PC
• Dual blue or white backlit name tags with brightness settings
• Water and dust protection rating IP54
• Web interface for device configuration
• SIP protocol
• H.264 video codec, G711 audio codec
• Local or PoE (Powered over Ethernet) power supply
• Expandable to 98 button calls plus unlimited digital calls with MTMKB
