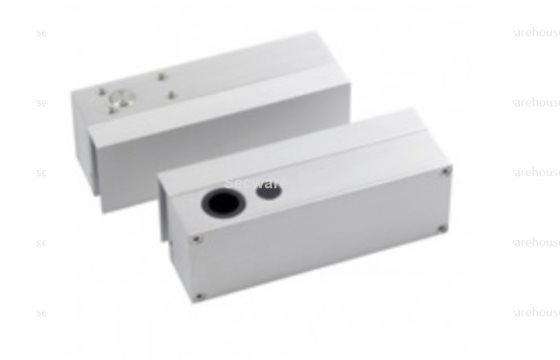

SSP Surface glass mount solenoid bolt

Surface glass mount solenoid bolt EB300VGL

This solenoid bolt is ideal for frameless glass doors with a glass
header due to the clamp fixing method. Suitable for single or
double action doors it includes door position monitoring and
variable re-locking delay.


Features

• Suitable for frameless glass doors and headers
• Fail safe (power to lock)
• Door position monitoring
• Variable re-lock delay
• Low holding current
• Anti-tamper design
• Suitable for single or double-action doors


Technical Information

• Max. glass thickness: 14mm
• Min. air gap required: 6mm
• Input voltage: 12Vdc ±10%
• Activating current 900mA
• Holding current 300mA
• Bolt diameter 16mm
• Bolt throw 16mm
• Monitoring contacts: SPDT (COM, NO, NC) rated 250mA
  @ 30Vdc
