CDVI Reversible Electric Lock

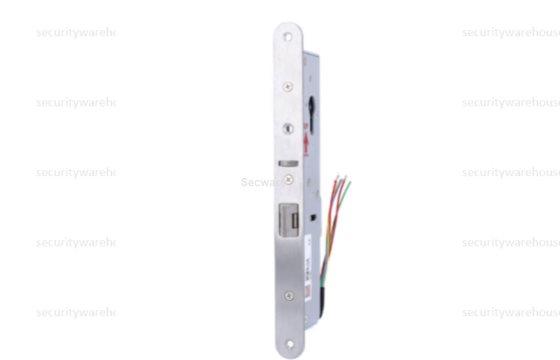

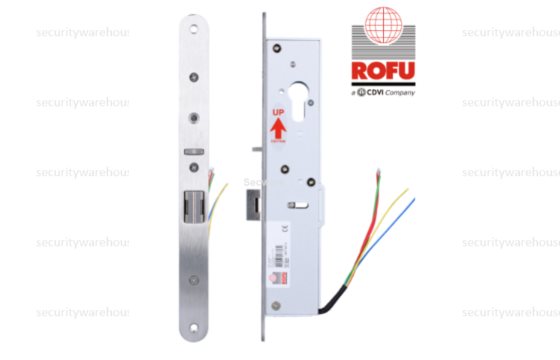

The ML-300-SW by CDVI is a high performance reversible Euro cylinder electric lock with holding force of up to 650kg.
The ML Range of electric locks are high performance locks suitable for double action doors.
The ML-300-SW provides EURO cylinder operation in the ML series locking range, suitable for vertical mounting and double action door sets.
Manufactured from stainless steel and featuring 650kg holding force, this lock is field selectable between fail safe and fail secure installations. With lock status monitoring and tested to 1,000,000 cycles the ML-300-SW is a great solution for doors require a solenoid type locking arrangement with euro cylinder provision, featuring high quality and long-life operation.
Key Features
- Reversible fail safe/fail secure electric lock
- Up to 650kg holding force
- Suitable for double action doors
- Tested for 1,000,000 cycles
- Lock status monitoring
Technical Specification
| Number of Relays | 1 x NO/NC |
| Fail Safe / Fail Secure | Fail safe or fail secure (switchable) |
| Holding Force (kg) | 650kg |
| Mounting | Mortice, vertical |
| Min Temperature (°C) | -10°C |
| Max Temperature (°C) | +49°C |
| Cycle testing | Tested for 1,000,000 operations |
| Handing | Reversible |
| Min. Voltage (V) | 12Vac/dc |
| Max Voltage (V) | 24Vac/dc |
| Voltage AC/DC | AC/DC |
| Consumption (mA) | 250mA @ 12Vdc, 150mA @ 24Vdc |
| Contact Rating | 3A @ 125Vac |
| Surface Material | Stainless steel |

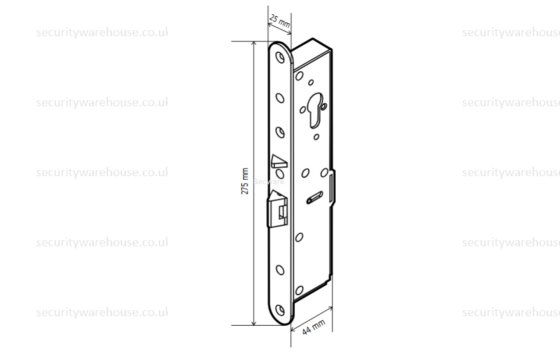

| Product Height (mm) | 275 mm |
| Product Width (mm) | 25 mm |
| Product Depth (mm) | 44 mm |
| Armature Plate Dimensions (LxWxH) | 150 x 40 to 50 x 1.5 mm |
| Product Weight (kg) | 0,815 kg |
