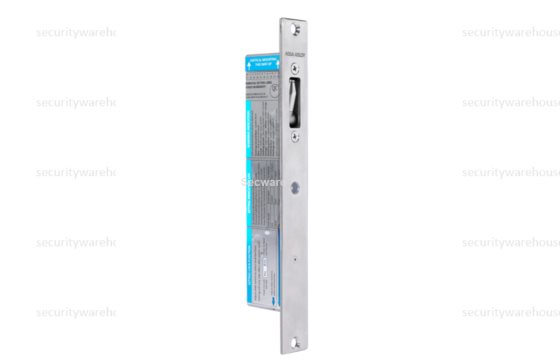

ASSA ABLOY V-Lock 12-24VDC PTO/PTL Monitored - Stainless Steel

ASSA ABLOY Monitored V-Lock

The new ES8100, also known as the V-lock, contains a high torque motorised bolt which moves into a V shaped Strike Plate, pulling the door into alignment, when locked. The ES8100 incorporates many improvements over its predecessor, the ES8000, including a higher preload rating of 100kg, Door Position Monitoring, integrated LED lock status and diagnostics visual indication, increased door misalignment correction from 7mm to 12mm, an IP53 rating for external door applications and simple, one-step, PTO/PTL onsite configuration.

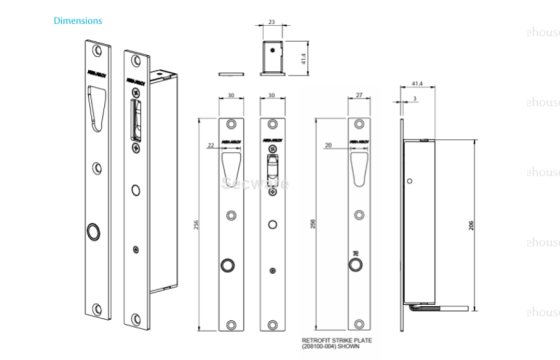

The ES8100 can be mounted either vertically or horizontally but cannot be mounted in the floor. The ES8100 V-lock can be mortice mounted and concealed from view or surface mounted, with the inclusion of an optional kit. A slim design with classic satin stainless steel faceplate, makes the ES8100 a product with great aesthetic appearance and easy installation. Although completely redesigned internally, the new ES8100 V-lock body and faceplate retain the original ES8000 footprint. The ES8100 strike plate utilises the same fixing locations but is 3mm wider to increase misalignment distance (narrower retrofit version available for ES8000 strike plate replacements).

Key Features

• A high holding force of 1000kg
• Comes with standard faceplate, connection lead and fixings.
• Integrated LED lock status and diagnostics visual indication making installation easier.
• Door Position and Lock Status Monitoring
• Door misalignment correction up to 12mm (+/-6mm)
• Simple, one-step, PTO/PTL onsite configuration
• Preload rating of 100kg
• Operating voltage: 12 - 24VDC
• IP53 rated for external door applications
• Optional Surface / Glass mount Kit

Applications

• Single and double swing hinge doors
• Doors subject to side load (pre-load)
• Misaligned doors
• Glass doors
• Suitable for use with access control, intercom, keypad and card reader systems and doors requiring door position monitoring

Technical Specification
