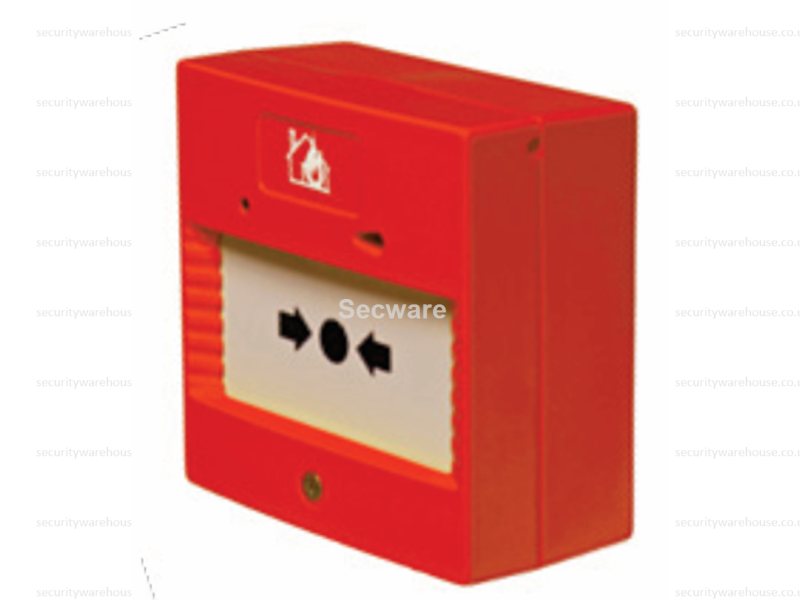

Rafiki Call Points are available with the option of an integral sounder, and are resettable.
Obsolete - No longer available with built in sounder
These manual call points are designed to comply with the latest european standards: EN54 parts 3 and 11.
With the resettable element the need for replacement glass is negated as the unit may be reset using the key provided.
The test key is inserted into the front of the unit in order to allow access for use wherever it may be sited. The user can test the call point with the test key or by depressing the element.
The call point also has the unique benefit of audible warning with an optional full specification built in sounder offereing 4 different sound patterns.
Every Call point comes with an LED for indication of End of Line and Alarm. There is no need to remove the front cover and the glass at installation; just one screw fixes the whole unit together.
The back box can be fitted at the time of installation with the other first fix items, the call point unit can be simply fitted in later. An adapter plate is also supplied, for use with standard flush or surface backboxes.
The manual call point is connected to the back box using simple flying lead terminations.
