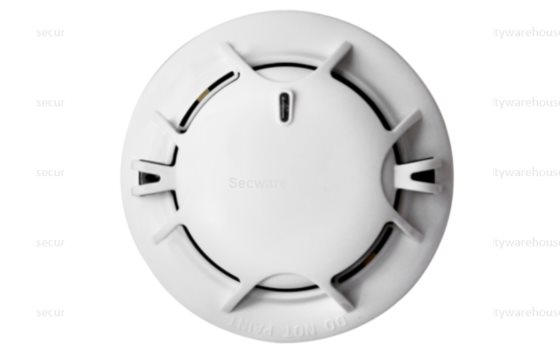

Kidde White Conventional Multisensor Fire Detector
The NC-DPM-W is an optical and heat multisensor detector. It combines photoelectric (optical) detection, fixed temperature and rate-of-rise detection technology. The smoke and heat sensors are integrated to provide a solution to a wide range of applications, allowing detecting of more complex fire types. Amongst these include are fire types generating black smoke as well as small particles fires such as those from burning alcohol.
The detector supports installation on the NC-DB-W conventional detector base for standard applications, or the NC-DBD-W diode base when head-out functionality to BS5839 standard is required. Detection sensitivities are programmable using the NC-D-PT device programmer.
Key Features
- Supports drift compensation to enable good environmental adaptability
- Self-diagnostic
- Local test activation with reed switch
- Chamber contamination checking
- All round LED visibility (360° viewing angle) avoids time spent on specific detector orientation
- Configurable polling LED support
- Remote indicator output
- 2 Programmable smoke sensitivity levels
Technical Specification
| Status indication | Red LED |
| User interface | Via LED - polling, fault, contamination and alarm |
| Compatibility | GST100A Series conventional CIEs as well as GST I-9319 Zone Monitor |
| Reset voltage | <1 VDC |
| Reset time | <10 s |
| Alarm levels | 2 |
| Connectivity | Zone connection - 2-core (polarity sensitive), RI connection - 2-core (polarity sensitive) |
