Apollo Discovery Marine Optical Smoke Detector

Apollo Marine Optical Smoke Detector

The Discovery Marine Optical Smoke Detectors are high-specification devices using the light scatter principle to quickly detect fire while effectively managing false alarms.

Key Features

  • Reliable fire detection in areas with a very wide temperature range from -40°C to +70°C
  • Five operating modes suitable for a range of applications where unique response behaviour is required
  • Drift compensation to ensure constant sensitivity
  • Ideal for accommodation decks, passages and escape routes
  • 58000-600MAR is certified to a broad range of marine approvals and is EAC approved
  • 58000-600MAR has been assessed and certified for use in a safety function, to SIL level 2

Technical Specification

ColourWhite

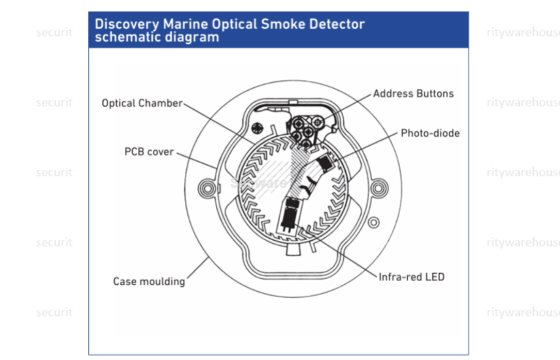

Sensor configurationHorizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
Weight105g
Materials housingPolycarbonate
Materials terminalsNickel plated stainless steel
Product length42mm
Product diameter100mm
Detection principlePhoto-electric light scattering
Product length1.65in
Product diameter3.94in
StandardsEN 54-7
  • Model: 58000-600MAR
  • Shipping Weight: 1 kgs
  • Manufactured by: Apollo
