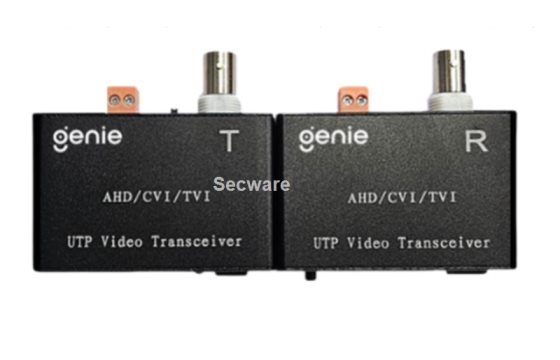

Genie AHD/CVI/TVI/CVBS Single Channel Active UTP Video Balun Pair

The Genie HDUBATXRX is a single channel 5MP 4 in 1 HD analogue video UTP transmitter and receiver. The unit has the capability to transfer real-time HD analogue video signal up to 500m and 760P/960P (CVBS) up to 800meters through Cat5/5e/6 cable.



Key Features

  • Support HD-AHD, HD-TVI, HD-CVI, CVBS/analogue video transmission over UTP
  • 720P/960P up to 800meters, 1080P/3MP/4MP/5MP up to 500meters
  • 60dB cross talk and noise immunity
  • Frequency response can be adjusted according to the specific circumstances
  • Built-in anti-surge, anti-thunder and anti-inference functions
  • DC12V/0.5–1A power adapter



Technical Specification

Weight0.16 kg
SupportsAHD / TVI / CVI / Analogue
ConnectionsFemale BNC and terminal Block
Transmission distance720P/960P: 800meters 1080P/3MP/4MP/5MP: 500meters
Common Mode Rejection Radio60dB
ImpedanceBNC: 75 ohms, Terminal: 100 ohms
Power adapterDC12V/0.5–1Amp
Working Temperature-10°C ~ 70°C
Storage Temperature-30°C ~ 70°C
Humidity0 ~ 95%
Dimensions113 × 45.5 × 29 mm
HousingAluminium alloy
Cable TypeCat5e/6 suggested



  • Model: HDUBATXRX
  • Shipping Weight: 1 kgs
  • Manufactured by: Genie CCTV
