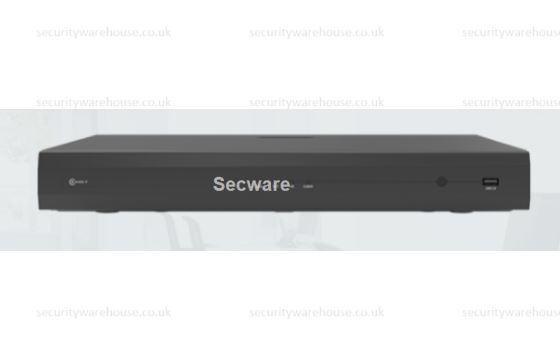

ESP IP PoE 8MP 16 Channel 8TB NVR Black

Key Features

HD Resolution Recording
H.265 Video Compression for Efficient Storage
Intelligent Features such as Line Cross Detection and Perimeter Intrusion Detection
Playback/Record/Remote View Simultaneously
Continuous/Scheduled/Motion Detection/Intelligent Record Modes
Remote Monitoring VIA APP
HDMI Output up to 4K
USB Backup for Evidence Transfer
Pre-Installed Surveillance Hard Drive
Up to 250m Cable Length per Channel

Technical Specification

Incoming Bandwidth	160Mbps
Outgoing Bandwidth	64Mbps
PoE Ports	16CH (<250 Meters per Channel)
Video Input	16CH
Audio Output	1CH
Display Output	1 x HDMI, 1 x VGA
Display Split	1/4/6/8/9/16/25/36
Display Resolution	3840X2160 @30 (HDMI Only), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60
Compression	H.265/H.264
Recording Resolution	Up to 8MP
Liveview/Playback Resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Decoding Capability	2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30
Recording Mode	Manual/Motion Detection/Schedule
Backup Mode	Network/2 x USB2.0
Ethernet	RJ-45 port (100/1000M)
Network Functions	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Network Monitoring	Web browser, Client Software, Android & IOS
Internal HDD	8TB HDD
NVR Power Consumption	<10W (without hard disk)
Power Input	100 - 240V AC (C13)
PoE Type	IEEE802af/at
Operation Condition	-10ºC – +55ºC
Dimensions	380x315x53mm
