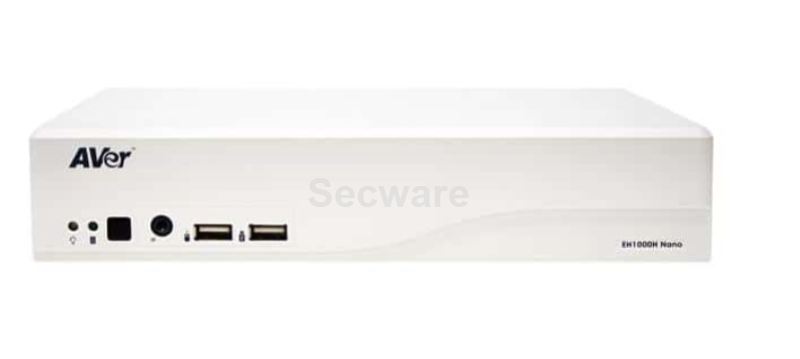

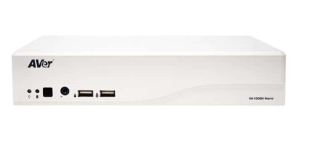

8 Channel Embedded Hybrid DVR
Product Overview
8-Channel Embedded Hybrid Digital Video Recorder, Compact Size, H.264 Compression (Analogue), H.264 / MPEG4 / MJPEG Video Steaming (IP), Supports Up to 4 Channels of IP (3 x 1.3MP & 1 x 2.1MP Cameras), Fan Less System, Free Client Software, 1TB or 2TB Storage Options, 200 FPS @CIF / 100 FPS @Half D1, 50 FPS @D1 (Analogue)
Key Features
- Embedded Hybrid
- Compact Size
- H.264 Video Compression (Analogue)
- H.264 / MPEG4 / MJPEG Video Steaming (IP)
- Supports Up to 4 Channels of IP (3 x 1.3MP & 1 x 2.1MP Cameras)
- EMAP Facility
- Remote Management
- USB Mouse, USB Drive & Remote Control (Supplied)
- 2 Front USB Ports
- Fan Less System
- POS Integration
- Free Client Software
- 1TB or 2TB Storage Options
- Mobile Phone Viewing from the DVR (Windows Mobile, Android, Blackberry, iPhone)
- Compatible with Most Major Brands of IP Cameras
- Suitable for Small to Medium Size Businesses
- Recording Rate; 200 FPS @CIF / 100 FPS @Half D1, 50 FPS @D1 (Analogue)
Technical Details
Model Number |
EH1008H |
Operating System |
Embedded Linux |
Video Compression |
H.264 |
Video Streaming (IP) |
H.264 / MPEG4 / MJPEG |
Video Inputs/Video Output |
8, VGA Out x 1 |
Analogue Spot Outputs |
2; 1 Spot Output
(Full Screen Output From Alerted Analogue Cameras), 1 TV Output (Full
Screen Output From VGA - Analogue Cameras) |
Recording Frame Rate (Analogue) |
CIF: 100 FPS, HALF D1: 100 FPS, D1: 50 FPS |
Playback Resolution |
1024 x 768 |
Audio Inputs |
4 |
Audio Output |
1 |
Ethernet |
1, 10/100 Base-T, Bandwidth Limited |
Sensor In / Relay Out |
4 / 1 |
Central Management System |
Consists of Remote iMatrix and Remote Console |
Remote DVR Connectivity |
WebViewer, JavaViewer (Mobile Phone), PDAViewer, SmartViewer, BlackberryViewer, iPhoneViewer |
User Access |
Unlimited Number of Users and Individual Passwords (Can be Pre-Configured) |
Back-Up |
USB Memory Stick |
Interface |
RS422 / RS485, Ethernet (10/100Base-T), USB 2.0 |
HDD |
Internal 1 x SATA HDD and 1 x External e-SATA HDD |
Fan |
Fan-less System |
Power |
DC 12V |
Power Consumption |
2Amp |
Operating Conditions |
Temperature: 0° ~ 40°C, Humidity: 90% RH |
Dimensions (W x H x D) |
235 x 53 x 160 mm |
Weight |
1.45 Kg (With HDD) |
